Nylon Spacers: The Complete Guide to Types, Sizes, and Applications

Nylon spacers are cylindrical plastic fasteners that create precise gaps between components in mechanical and electronic assemblies, valued for their electrical insulation, corrosion resistance, and lightweight properties.

You’re designing a PCB enclosure. The board needs to float 6 mm above the base plate — grounded but not touching metal, vibration-isolated, and assembled without a torque wrench. Or you’re routing wiring through a panel and need consistent gap control without the galvanic corrosion risk of steel. In both cases, nylon spacers do the work that metal hardware simply can’t match in these contexts.

This guide covers everything procurement engineers, PCB designers, and fabrication managers need to know about nylon spacers: material grades and what they actually mean for service life, the full taxonomy of types, real-world sizing choices, application-specific selection criteria, and the sourcing details that spec sheets skip.

What Are Nylon Spacers?

Nylon spacers are precision-machined or injection-molded cylindrical components placed between two parts to maintain a defined separation. They carry compressive loads, align components on a shared fastener axis, and — critically — provide electrical isolation between metal parts. That last property is why nylon spacers dominate PCB mounting, terminal block spacing, and automotive sensor isolation.

The core function sounds simple: fill a gap, hold a distance. But the engineering behind a well-specified nylon spacer involves wall thickness tolerances (±0.05 mm in precision grades), bore diameter control for thread engagement, and material selection that must survive both the assembly process and the operating environment.

Nylon vs. Other Spacer Materials

Nylon spacers occupy the sweet spot for electronics, consumer goods, and moderate-load mechanical assemblies. When you need higher temperatures or load-bearing capacity beyond nylon’s range, you move to aluminum or steel spacers — but you lose the insulation advantage.

The Material Behind the Name: Nylon Grades

“Nylon” covers a family of polyamide polymers with meaningfully different properties. Knowing which grade you’re getting matters more than most distributors acknowledge.

PA6 (Nylon 6): Lower cost, absorbs moisture more readily (~2.7% water absorption at 50% RH), dimensional changes as humidity fluctuates. Fine for indoor, controlled-environment assemblies. Not ideal where tight tolerances must hold across seasons.

PA66 (Nylon 6/6): The workhorse grade — roughly 15% stiffer than PA6, better creep resistance under sustained load, lower moisture absorption (~1.5% at 50% RH). According to DuPont’s engineering polymers technical documentation, PA66 maintains dimensional stability approximately 20% better than PA6 in humid environments. Most commercial-grade nylon spacers labeled simply “nylon” are PA66.

Glass-filled PA66 (PA66-GF30): 30% short glass fiber reinforcement roughly triples the tensile strength (from ~80 MPa to ~210 MPa) and nearly halves the thermal expansion coefficient. These are the choice for structural applications — mounting heavy heat sinks, high-vibration automotive brackets, and load-bearing relay mounts. Color is typically gray or black because the fibers prevent uniform dying.

Nylon 12 (PA12): Lower moisture absorption (~0.6%), superior dimensional stability, better chemical resistance to fuels and lubricants. Common in automotive and fluid-system applications. Costs roughly 2–3× PA66 but the dimensional stability often justifies it.

In practice, if a drawing says “nylon spacer” without a grade, you will get PA66. If your application sits in a wet, chemically aggressive, or thermally cyclic environment, specify the grade explicitly.

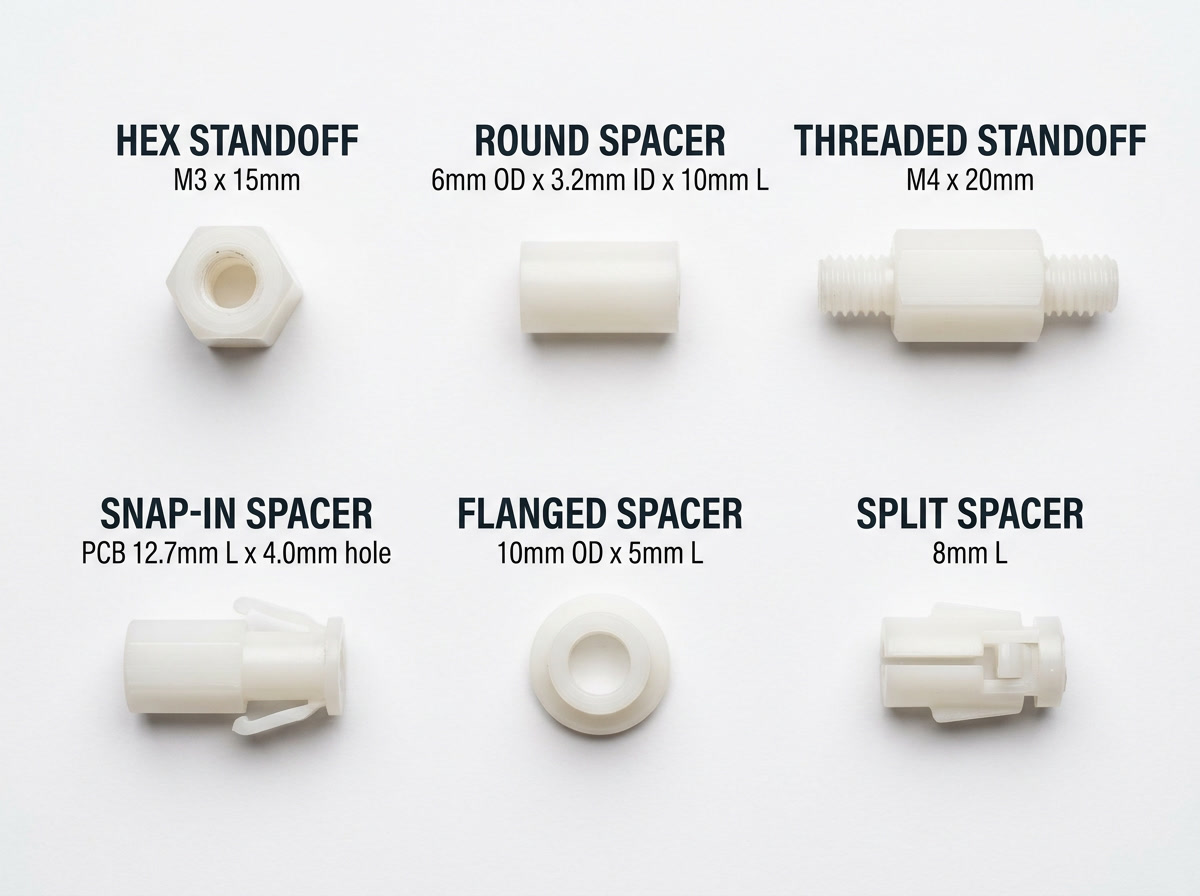

Types of Nylon Spacers

Not all nylon spacers are the same shape, and the geometry drives both the application fit and the load path through the assembly.

Round (Cylindrical) Spacers

The most common geometry. A plain cylinder with a through-bore sized to pass a bolt, machine screw, or rod. Round spacers work where rotation prevention isn’t required and where the fastener handles alignment. They’re the default choice for PCB standoffs, panel spacing, and through-bolt assemblies.

Available in smooth bore (for through-bolts), or with a slightly undersized bore that grips the fastener to prevent loosening under vibration.

Hex Spacers (Standoffs)

Hexagonal external profile with either a through-bore or female thread on both ends. The hex shape lets you torque them with a standard wrench — critical when you need a defined preload rather than finger-tight. Female-female hex spacers are ubiquitous in PCB stacking: thread a screw in from one end, stack the next board, thread the next screw from the top. Clean, repeatable, reworkable.

Male-female hex standoffs add a threaded pin on one end for direct PCB mounting without a separate screw.

Threaded Nylon Spacers

Both male-female and female-female configurations with internal or external threads. Internal threads are typically cut (tapped) rather than molded, which gives better thread accuracy and pull-out strength. As Wikipedia’s article on fasteners notes, threaded spacers are classified as internally threaded inserts when the thread carries tensile load — a distinction that matters when calculating pull-out values for safety-critical mounts.

Thread standards most commonly encountered: M2, M2.5, M3, M4, M5, M6 metric; 4-40, 6-32, 8-32 inch.

Snap-In / Snap-Lock Spacers

PCB designers’ favorite shortcut for high-volume consumer electronics. The spacer has integral snap features that click into a chassis cutout or PCB hole without any additional fastener. Assembly time drops to under a second per mount. The trade-off: snap-in spacers are single-use (removal usually damages the retention feature) and offer lower pull-out force than threaded alternatives. Appropriate for consumer products with controlled service lives; less appropriate for field-serviceable industrial equipment.

Slotted and Split Spacers

A longitudinal slot allows the spacer to slide onto a shaft or rod from the side — no need to thread over a long shaft. Common in shaft-alignment assemblies, conveyor rollers, and wire management. The slot reduces compressive strength roughly 20–30% compared to a closed cylinder of the same wall thickness.

Flange Head Spacers

A collar or flange on one or both ends distributes the bearing load across a larger surface area. When you’re mounting into a soft substrate — fiberglass PCB laminate, thin sheet plastic, foam-core composite — a flat flange prevents the spacer from crushing the material under bolt preload. If your assembly spec shows nylon spacers mounted into FR4 board material, flanged spacers are worth the premium.

Key Applications for Nylon Spacers

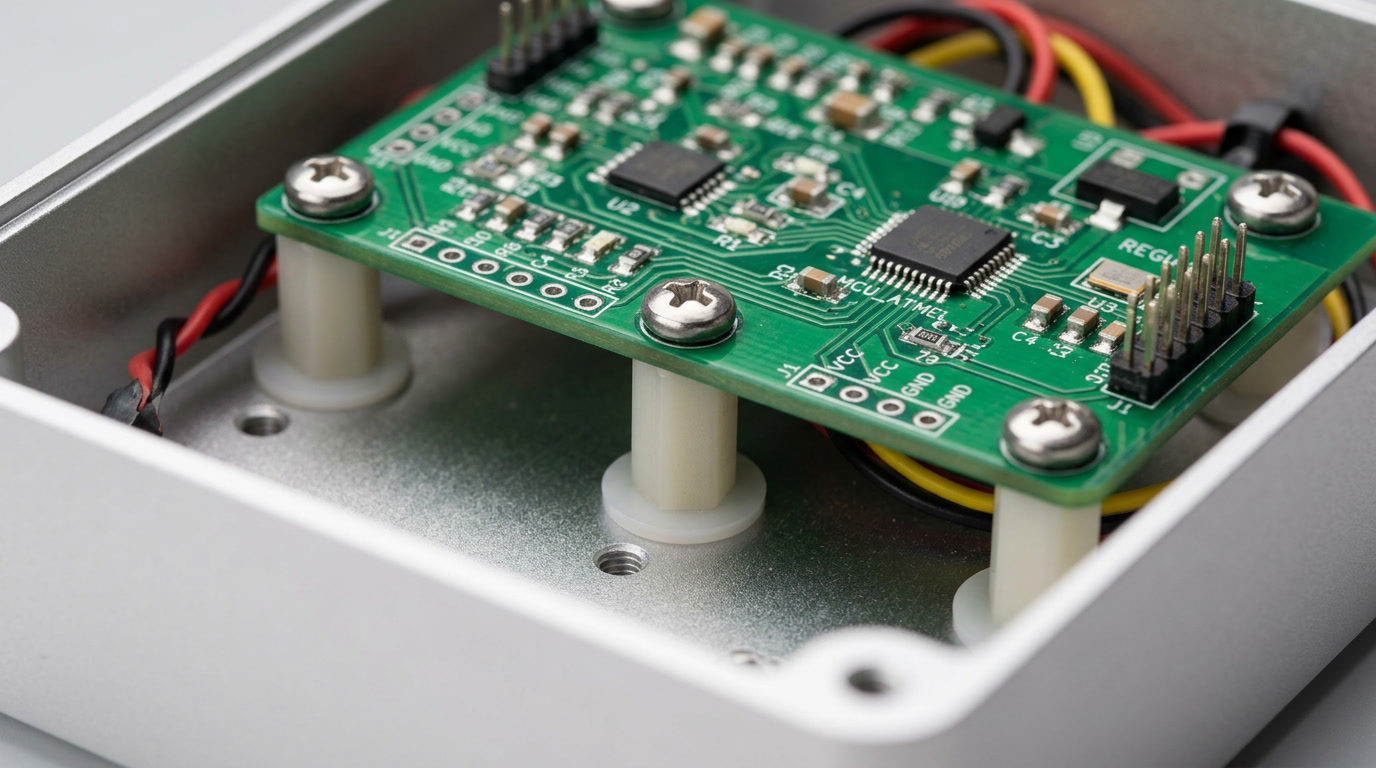

PCB and Electronics Mounting

This is the highest-volume application globally. PCB manufacturers and contract electronics assemblers consume nylon spacers by the millions annually — primarily M3 and M2.5 hex standoffs, 5–15 mm length, natural (off-white) or black.

The electrical insulation is non-negotiable in this context. Grounding a PCB directly to a metal enclosure with metal standoffs creates a ground plane connection that the circuit may not be designed for. Nylon spacers maintain the PCB’s designed ground reference. In RF designs, the dielectric properties of the spacer can influence antenna performance — in those cases, PTFE or polyethylene spacers may outperform nylon.

Vibration is the other driver. Direct contact between the PCB and enclosure transmits mechanical vibration directly into solder joints. Nylon spacers add a small amount of damping; more significantly, they allow the PCB to flex slightly under shock without translating all the stress through the mounting holes.

Automotive and Transportation

Nylon spacers appear throughout vehicle sensor mounting, wiring harness management, and interior trim assembly. Automotive grades are typically PA66 or PA12 for chemical resistance to fuel, brake fluid, and cleaning solvents. Temperature specifications must account for under-hood ambient (up to 120°C continuous) plus radiant heat from nearby components.

The typical automotive nylon spacer standard requires UL 94 V-2 or V-0 flame rating — something to confirm when sourcing, since basic commercial spacers often don’t carry flame certifications.

Industrial Machinery

In conveyor systems, pump assemblies, and factory automation, nylon spacers handle alignment tasks and protect precision surfaces from metal-on-metal contact. A steel shaft running through an aluminum housing with nylon spacers as intermediate elements prevents galvanic corrosion — a significant cause of premature fastener seizure in mixed-metal assemblies.

Load ratings matter here in a way they don’t in light electronics work. A nylon spacer under sustained compressive load at elevated temperature will creep — permanently deform over time. For sustained loads above roughly 15 MPa and temperatures above 80°C, glass-filled PA66-GF30 or a switch to aluminum spacers is the engineering-safe choice.

Marine and Outdoor Applications

Nylon’s corrosion resistance and UV stability (when UV-stabilized grades are specified) make it suitable for outdoor electrical enclosures, marine electronics, and outdoor signage. Standard natural PA66 is not UV-stabilized — outdoor applications require black spacers (carbon black provides UV protection) or explicitly UV-stabilized compounds.

How to Choose the Right Nylon Spacer

Selecting nylon spacers involves five parameters. Miss any one of them and the assembly either fails or becomes unnecessarily expensive.

Step 1: Define the Bore Diameter (ID)

The inner diameter must clear your fastener. For metric bolts, add 0.2–0.3 mm clearance: an M3 bolt (3.0 mm shank) needs a 3.2–3.3 mm bore. Undersized bores bind; oversized bores allow the spacer to shift laterally, degrading alignment precision.

For threaded spacers, match your thread standard exactly: M3×0.5 (standard metric coarse), M3×0.35 (fine), or the inch equivalents. Coarse threads are more forgiving in nylon — fine threads strip more easily under over-torque.

Step 2: Determine the Outer Diameter (OD)

OD determines bearing area and clearance from adjacent components. Larger OD gives more surface for compressive load but requires more clearance in tight assemblies. A standard guideline: OD should be 2–3× the ID for structural spacers; for lightweight PCB applications, smaller ratios are acceptable.

Step 3: Set the Length (Height)

Precision matters here more than buyers expect. A 5.00 mm nominal spacer often has ±0.1 mm manufacturing tolerance. When you’re stacking multiple spacers to achieve a total gap, stack tolerances multiply. For controlled-height assemblies with 3+ spacer levels, specify precision-grade (±0.05 mm) spacers and account for the tolerance budget in your stack-up analysis.

Step 4: Choose the Material Grade

Step 5: Confirm Any Certifications Needed

UL 94 HB — basic horizontal burn requirement, minimum for most electronics.

UL 94 V-0 — self-extinguishing within 10 seconds, required for many power supply and switchgear applications.

RoHS compliant — required for EU market electronics.

REACH compliant — required for material declaration in EU markets.

Most commodity nylon spacers carry UL 94 HB at minimum. If you need V-0, source from suppliers who publish UL Yellow Card listings — the certification covers specific lot numbers and manufacturing sites, not just the material in general.

Common Sizing Mistakes to Avoid

Over-torquing threaded nylon spacers. Nylon threads strip at roughly 30–50% of the torque required for equivalent steel threads. M3 nylon: max 0.3–0.4 N·m. M4 nylon: max 0.8–1.0 N·m. Use a torque driver or calibrated electric screwdriver for production builds.

Ignoring moisture effects on length. PA66 can grow 0.2–0.5% in length when fully saturated versus dry-as-molded. In a 20 mm spacer, that’s 0.04–0.1 mm — negligible for most work, but relevant for precision optical or sensor mounts.

Mixing metric and inch bores. An M3 bolt (3.00 mm) and a 1/8-inch bore (3.175 mm) are close but not interchangeable without rattle. Confirm the bore system matches your fastener standard.

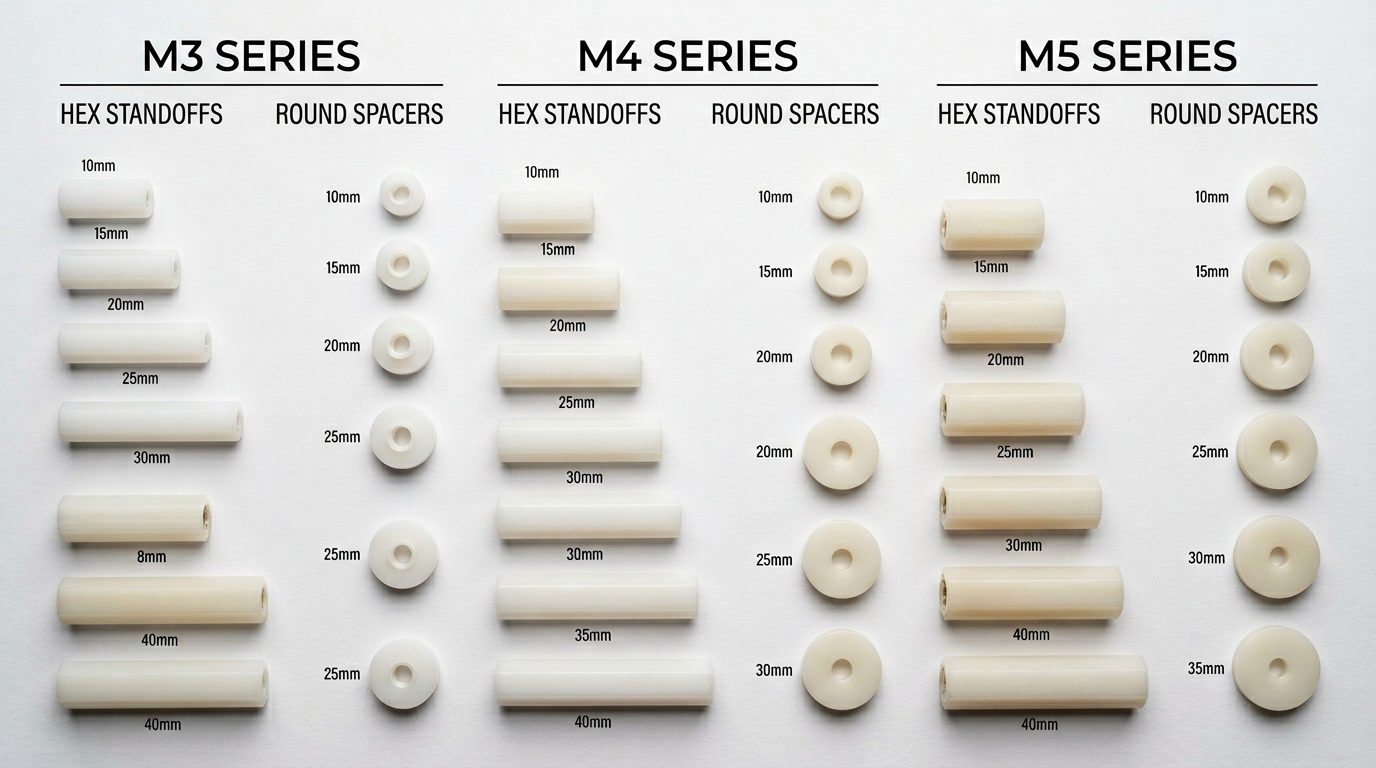

Nylon Spacer Size Reference Tables

Metric Nylon Spacers — Common Sizes

Inch Nylon Spacers — Common Sizes

Cutting and Modifying Nylon Spacers

One of the underappreciated advantages of nylon spacers: they machine easily with standard woodworking and metalworking tools.

Cutting to length: A fine-tooth hacksaw (32 TPI) or a miter saw with a fine carbide blade cuts nylon cleanly. For precision work, a lathe gives the best face squareness. Deburr cut ends with 400-grit sandpaper — a burr on the face will create an angular gap in the assembly.

Drilling: Nylon drills easily with standard HSS twist drills. Use a slow feed rate and high RPM to avoid melting rather than cutting. No cutting fluid needed; dry drilling works fine for nylon. As the Wikipedia article on machining plastics notes, thermoplastic polymers like nylon must be kept cool during machining to prevent glazing, which hardens the surface and degrades thread quality.

Tapping threads: Use a plug tap with generous back-relief. Cut threads, not roll-form threads, perform better in nylon — nylon’s low elasticity means rolled threads tend to strip during assembly. Apply no cutting oil; dry tapping gives better thread quality in nylon.

Counterboring: When you need a flush or recessed screw head, counterbore the nylon spacer with a standard end mill or a drill-press-mounted forstner bit. Keep the shoulder transition sharp — a rounded entry radius will cause the screw head to rock rather than seat flat.

Custom lengths: For prototype runs, it’s often faster to order standard-length nylon rod stock and cut your own spacers than to source custom-length parts. M3-bore rod in PA66 is available in 500 mm and 1000 mm lengths from most industrial plastic suppliers.

Future Trends in Nylon Spacer Technology

Bio-Based and Recycled Polyamides

The fastener industry is tracking a significant material shift: bio-based nylons derived from castor oil (PA610, PA1010) now match PA66’s mechanical properties in many applications while reducing carbon footprint by up to 50% compared to petroleum-derived PA66. According to Arkema’s engineering materials research, bio-based polyamide adoption in automotive and electronics grew at roughly 18% annually between 2022 and 2025, driven by OEM sustainability mandates.

For nylon spacers, this matters most in automotive and consumer electronics — sectors where OEM supplier codes of conduct increasingly require environmental declarations. Expect bio-based nylon spacers to become standard catalog items at major distributors within 2–3 years.

Electrically Dissipative Nylon

As electrostatic discharge (ESD) damage becomes a growing concern in sensitive electronics manufacturing, ESD-dissipative nylon spacers — compounded with carbon black or graphene to achieve 10⁶–10⁹ Ω surface resistivity — are growing in demand. Standard nylon is an insulator (>10¹² Ω) and can build up static charge in automated assembly environments. ESD-safe spacers eliminate this risk without the full conductivity of metal spacers.

3D-Printed Custom Spacers

For prototyping and small-batch custom assemblies, FDM-printed nylon (PA12 in SLS, Nylon X in FDM) spacers now achieve tolerances of ±0.2 mm — adequate for many non-critical applications. The economics are compelling for 1–100 piece runs of unusual dimensions. Production volumes above 500 pieces still favor injection molding or machining for both cost and consistency. The MakerBot Industries engineering guide estimates print costs for a standard M3×10 mm nylon spacer at approximately $0.12 each at 100-unit quantities vs. $0.02–0.04 from stock manufacturing.

Frequently Asked Questions About Nylon Spacers

What material is best for spacers?

Nylon (PA66) is best for most electrical and general-purpose assemblies due to its insulation, corrosion resistance, and low cost. For high-temperature or high-load applications, use aluminum or glass-filled nylon. For chemical environments, PA12 outperforms standard PA66.

How do you cut nylon spacers to a custom length?

Use a fine-tooth hacksaw (32 TPI) or a lathe for precision cuts. Secure the spacer firmly, cut slowly to avoid cracking, then deburr the face with 400-grit sandpaper. Avoid high-speed angle grinders — they generate enough heat to melt nylon at the cut face.

What is the maximum temperature nylon spacers can handle?

Standard PA66 nylon spacers handle continuous service temperatures up to 110–120°C. Short-term peak exposure can reach 150°C. For sustained high-temperature applications, use glass-filled PA66-GF30 (rated to 130°C continuous) or switch to metal spacers.

Can nylon spacers be used outdoors?

Yes, but specify black (carbon-black-filled) or UV-stabilized grades. Natural off-white nylon degrades under UV exposure within 6–18 months, becoming brittle and losing dimensional tolerance. Black nylon spacers use carbon black as a UV absorber and remain stable for 5–10+ years of outdoor service.

What is the difference between a nylon spacer and a nylon standoff?

A spacer is a simple cylinder — it has no thread engagement capability beyond a clearance bore. A standoff has threaded ends (male, female, or both) that allow it to both space components and fasten them. In casual use, the terms overlap; technically, standoffs are a threaded subset of spacers.

How much torque can nylon spacers handle?

Threaded nylon spacers have much lower torque limits than metal: M3 nylon tapped threads should not exceed 0.3–0.4 N·m, M4 approximately 0.8–1.0 N·m. Exceeding these values strips the threads without warning. Always use a torque driver in production — hand-tight “feel” varies too much across assemblers.

Are nylon spacers electrically conductive?

Standard nylon is an excellent electrical insulator with volume resistivity above 10¹² Ω·cm — it will not conduct electricity in normal assembly environments. ESD-dissipative and conductive nylon grades are available for anti-static applications but behave differently; confirm the grade before use.

What sizes of nylon spacers are most commonly stocked?

M3, M4, and M5 hex and round spacers in 5–20 mm lengths cover roughly 80% of PCB and electronics applications. For inch-system applications, #6, #8, and #10 clearance bores in 1/4 to 3/4-inch lengths are the most commonly stocked. Non-standard lengths and large-bore spacers often require 2–4 week lead times from specialty fastener suppliers.

Conclusion

Nylon spacers solve a specific and important problem: creating precise, electrically isolated, corrosion-free separation between components in assemblies where metal hardware would create grounding issues, galvanic corrosion, or weight penalties. The range of types — round, hex, threaded, snap-in, flanged — maps to almost every assembly geometry you’ll encounter.

The selection process is straightforward once you know which five parameters govern the choice: bore ID, outer diameter, length, material grade, and any certification requirements. Most procurement failures come from under-specifying the grade (PA6 instead of PA66 in a humid environment), over-torquing threads, or ignoring the UV sensitivity of natural-colored nylon outdoors.
