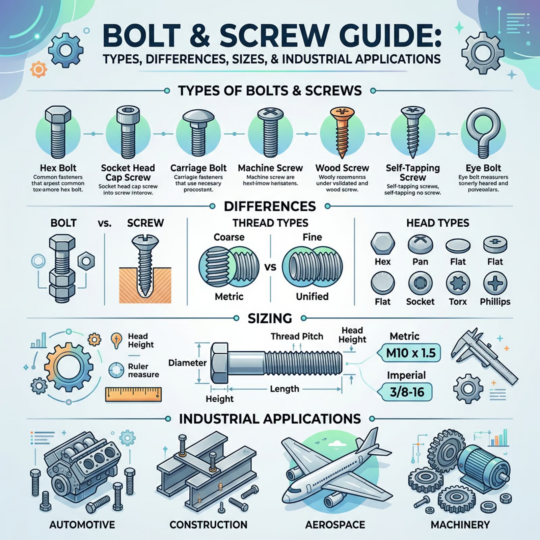

Bolt Screw Guide: Types, Differences, Sizes, and Industrial Applications

A bolt screw is a threaded fastener — but choosing the wrong type adds cost, delays production, and weakens your assembly.

Walk into any hardware store, scroll through any supplier catalog, and you will quickly realize that the terms bolt and screw get used interchangeably in ways that are, frankly, misleading. Most people grow up calling anything with threads a “bolt screw” and move on. That works fine until it does not — until a machine screw strips out of a soft panel because someone used a bolt spec, or a structural joint fails because a screw replaced a bolt that was holding load through a nut.

The goal here is to be direct: if you know exactly what differentiates a bolt from a screw, which thread types do what, and which specifications match which applications, you will make fewer expensive mistakes at the design stage and fewer frustrating ones during assembly. Let us start with the fundamentals and build from there.

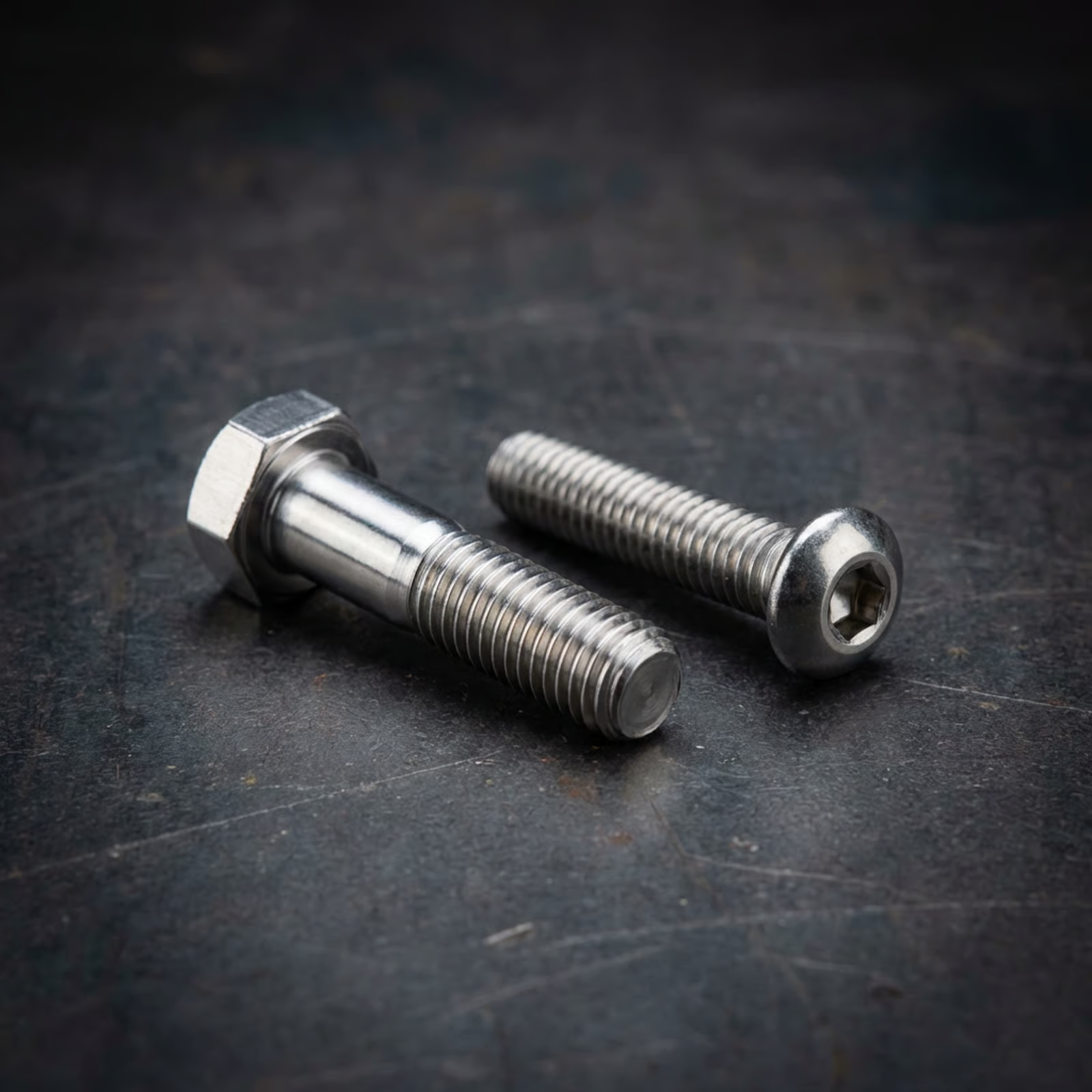

Bolt vs Screw: The Core Difference

Various metal bolts and nuts

A bolt is secured with a nut. A screw creates or engages its own thread in the mating material.

That single sentence resolves most of the confusion. Both a bolt and a screw are threaded fasteners — both have a head, a shank, and helical threads. But how they create and hold a joint is completely different.

A bolt passes through two or more pre-drilled, unthreaded holes and is secured on the other side by a nut. The clamping force comes from both ends being tightened against each other. Because the bolt shank itself often has an unthreaded section, it can carry shear loads through that section rather than through threads alone. That is why bolts are the choice when structural load matters.

A screw, on the other hand, threads directly into the mating material — either a pre-tapped hole (machine screw), a pre-drilled pilot hole (wood screw), or even an untouched surface (self-tapping screw). The screw creates or engages its own thread and holds the joint without a nut.

Where it gets interesting is the grey area in the middle. A hex cap screw can look identical to a hex bolt. Whether it functions as one or the other depends entirely on how it is being used in the assembly — with a nut or without. Industry standards like ASME and ISO acknowledge this overlap, which is why precision sourcing requires looking at specification sheets rather than relying on names alone.

Types of Bolts

Not all bolts are built the same, and the wrong bolt type for a given load condition or environment can lead to early failure — not dramatically, but gradually, in ways that are hard to diagnose later.

Hex Bolt

The hex bolt is the most widely specified bolt in industrial and construction applications. Its six-sided head allows torque to be applied from multiple angles, and the flat bearing surface distributes clamping load well. Hex bolts follow standards like SAE Grade 5 and Grade 8 in imperial, or ISO 8.8, 10.9, and 12.9 in metric.

When to use them: Any heavy-duty structural joint, equipment mounting, and frame assembly.

Carriage Bolt

Carriage bolts have a smooth, domed head and a square section directly beneath the head that bites into the wood or soft material as the nut is tightened. This prevents the bolt from spinning during tightening — useful when access is limited to one side.

When to use them: Wood-to-wood connections, fence assembly, playground equipment.

Flange Bolt

A flange bolt has a built-in washer-like flange under the head, distributing load over a wider bearing area. This makes them common in automotive, HVAC, and piping flange connections where spreading load matters.

When to use them: Pipe flanges, engine components, and applications where you want to avoid separate washers.

U-Bolt

A U-bolt wraps around a pipe or round section, with threaded ends protruding for nuts to tighten from below. They are standard in piping supports, vehicle suspension, and marine hardware.

When to use them: Pipe clamps, trailer hitches, marine rigging.

Eye Bolt

An eye bolt has a looped head instead of a standard head. A nut secures it from the other side, and the loop carries tensile loads — hooks, cables, rigging.

When to use them: Lifting points, cable anchors, hanging hardware.

Stud Bolt

A stud bolt is fully threaded with no head — it is threaded on both ends (or fully along its length) and held by nuts at both ends. These are used in high-pressure flanged pipe assemblies and are common in petrochemical and power generation industries.

When to use them: High-pressure flanges, engine heads, and heavy industrial flanged connections.

Types of Screws

Screws cover an enormous range of applications, from a tiny electronics screw to a structural lag screw that replaces a bolt in wood framing. The key variable is always the same: what material is the screw entering, and how much load does it need to hold?

Wood Screw

Wood screws have coarse, widely spaced threads optimized to grip wood fiber. The point is self-starting, and the thread runs only partway up the shank. The unthreaded upper shank allows the two wood members to be pulled together rather than keeping a gap between them.

Machine Screw

Machine screws require a pre-tapped hole or a nut. They are precision-threaded along their full length, available in dozens of head styles, and used in electronics, machinery, and equipment where clean, repeatable assembly is needed.

Self-Tapping Screw

Self-tapping screws cut or form their own thread as they are driven. They are fast and do not require tapping, which makes them common in thin sheet metal, plastics, and light-gauge panels. Hardened tips allow them to pierce material without a pilot hole in thinner gauges.

Lag Screw (Lag Bolt)

Despite being commonly called a lag bolt, a lag screw is technically a screw — it threads directly into wood without needing a nut. Lag screws are large, hex-headed, and used in structural wood connections where bolt-through installation is impractical.

Set Screw

A set screw has no head. It is fully threaded and used to hold a rotating shaft to a hub or collar. It is common in pulleys, sprockets, gears, and couplings. The pointed or cup-shaped tip bites into the shaft when tightened.

Sheet Metal Screw

Sheet metal screws are hardened, sharp-pointed, and threaded to bite into thin metal sheets. Unlike machine screws, they do not require pre-tapped holes in thinner applications and are extremely common in HVAC ductwork, appliance panels, and automotive trim.

Thread Types: The Detail Most Buyers Skip

Thread specification is where many sourcing conversations go wrong. Two screws can look identical but be completely incompatible because one is metric and the other is imperial, or because the thread pitch is different.

Fine threads grip harder in vibration-heavy environments because there is more thread contact per unit length. Coarse threads tolerate more misalignment and dirt during assembly, which is why they dominate in outdoor, construction, and quick-assembly applications.

One mistake worth naming explicitly: never mix thread standards. A metric M10 bolt looks nearly identical to a 3/8-16 UNC bolt in photographs, but they will cross-thread on first attempt and damage both parts. If you are sourcing internationally, always confirm thread standard, pitch, and major diameter against the actual engineering drawing.

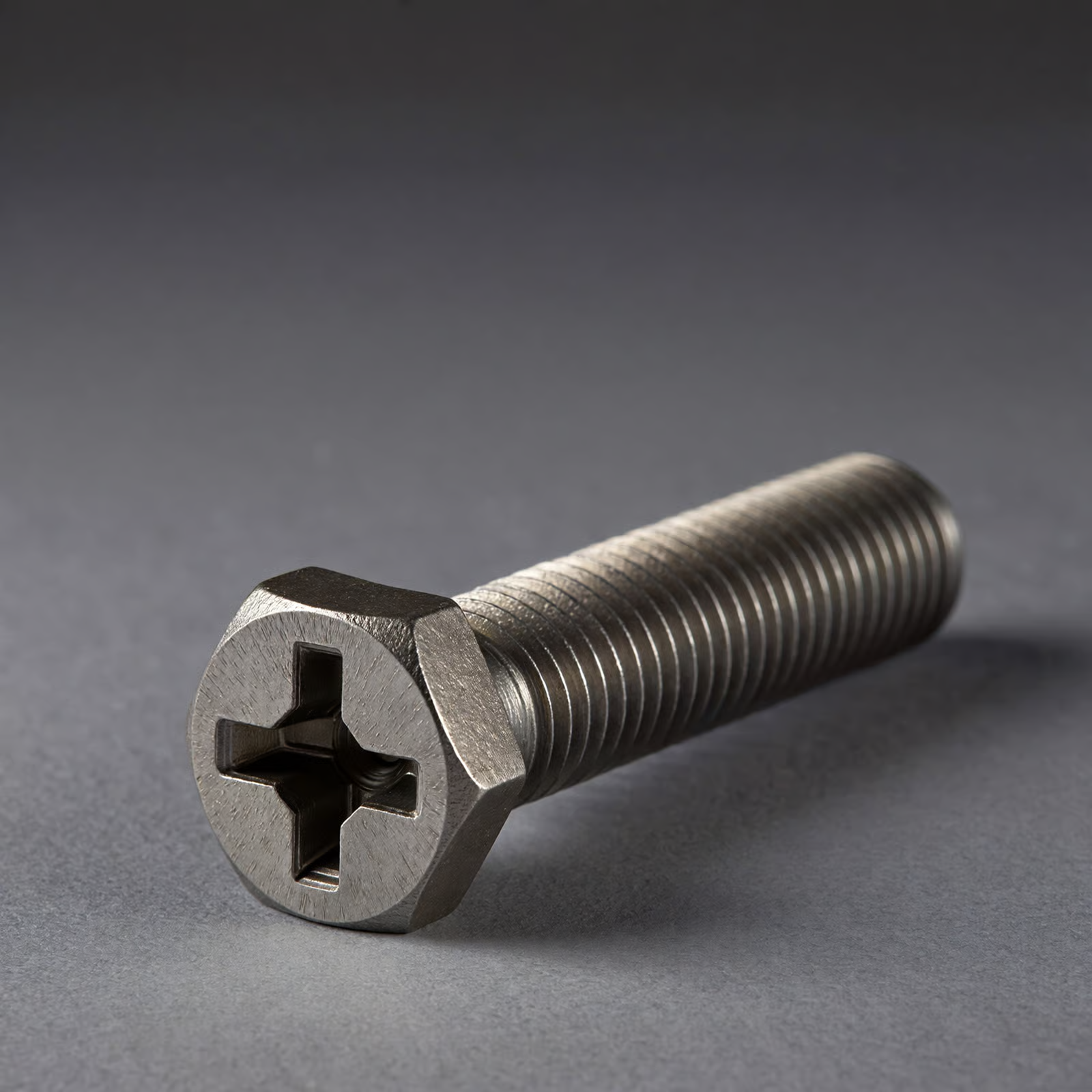

Bolt Screw Head Types

The head of a bolt or screw determines both how much torque can be applied and how the finished joint looks. In visible or consumer-facing assemblies, head type is as much a design decision as an engineering one.

The Torx drive has become increasingly common as a replacement for Phillips in both production and aftermarket scenarios, because the star-shaped socket maintains drive engagement at higher torque without camming out. In automotive and electronics manufacturing, Torx is now more common than Phillips for precision-torqued fasteners.

Material Grades and Coatings

A bolt screw can fail not because the specification was wrong but because the material grade was wrong for the load or environment. Grade selection is one of the least discussed and most consequential decisions in fastener procurement.

Bolt grade markings (imperial):

• Grade 2 — No head markings, low-carbon steel, light-duty
• Grade 5 — Three radial lines, medium carbon steel, standard structural use
• Grade 8 — Six radial lines, alloy steel, high-strength applications

Metric property classes:

• 8.8 — Equivalent to approximately Grade 5; common in general manufacturing
• 10.9 — High strength; flange joints, high-load machinery
• 12.9 — Highest common grade; engine components, precision equipment

Finish options and what they actually do:

• Zinc plating — Basic corrosion resistance, indoor or dry conditions
• Hot-dip galvanizing — Thicker zinc coating, suitable for outdoor and humid environments
• Stainless steel (A2/A4) — Excellent corrosion resistance; A4 is marine-grade
• Black oxide — Appearance finish, minimal corrosion protection alone
• Dacromet / geomet — Thin-film corrosion protection used in automotive and wind turbine applications

Stainless steel is not always the right answer, even in corrosive environments. In chloride-heavy conditions (marine, chemical), A4 stainless outperforms A2. But in structural applications where load matters above all, alloy steel Grade 8 or 12.9 may outperform stainless despite less corrosion resistance.

Industrial Applications

The real test of understanding bolt screw specifications is being able to match them to real-world use scenarios without reverting to catalog defaults.

Construction and Structural Steel

Hex bolts in Grade 8 or 10.9 are standard in structural steel connections. Connection geometry, load direction, and preload specification all influence whether the joint uses bearing bolts or high-strength friction-grip (HSFG) bolts. Bridge decks, tower bases, and modular building frames all rely on correctly specified bolt screw assemblies that are expected to hold load for decades.

Automotive Manufacturing

Automotive fasteners follow extremely tight torque specifications — often quoted to within ±5 Nm. Engine cylinder heads, suspension components, and driveline flanges all use high-property-class bolts (10.9 or 12.9), frequently with thread-locking compounds or controlled stretch-to-yield torquing. A single under-torqued bolt on a cylinder head can cause gasket failure within a few thousand miles.

Electronics and Precision Equipment

Machine screws in M2–M4 metric or #4–#8 imperial are the standard here. Socket head cap screws are common where wrench access is tight, and countersunk screws are used when the panel surface needs to be flush. Stainless or anodized aluminum is often specified for appearance or corrosion prevention in consumer-facing devices.

Furniture and Interior Fitout

Furniture uses a combination of wood screws, barrel nuts, connector bolts, and Confirmat-style screws depending on the design. Machine-finished furniture increasingly relies on bolt screw assemblies that allow serviceability — the joint can be opened, adjusted, and closed without damage — rather than permanent fastening.

HVAC and Plumbing

Sheet metal screws and self-tapping screws dominate in ductwork. Flange bolts and stud bolts are standard in pipe flanges. Thread type here is critical because many HVAC and plumbing connections involve dissimilar materials — aluminum, galvanized steel, PVC, and copper — and galvanic corrosion can be a real failure mode if material pairings are ignored.

Aerospace and Defense

Aerospace fasteners are subject to the most demanding specifications of any industry. AN/MS standards govern most aerospace bolt screw hardware in the United States. Every fastener in a certified aircraft must be traceable to a material and dimensional specification, and the use of unauthorized substitutions is a serious compliance violation regardless of whether the part “looks the same.”

How to Choose the Right Bolt Screw

This is where a lot of generic fastener guides give vague advice like “consider your application requirements.” That is not useful. Here is a practical checklist.

Step 1 — Define the load type:
Is the joint carrying tension (pulling the fastener along its axis), shear (cross-loading), or both? Bolts with full-shank unthreaded sections handle shear better than fully-threaded fasteners.

Step 2 — Define the material you are fastening into:
Metal-to-metal connections typically use bolts with nuts or machine screws into tapped holes. Wood uses screws. Thin sheet metal uses self-tapping screws. Plastics require careful selection — too aggressive a thread can crack the boss on insertion.

Step 3 — Specify thread standard and size early:
Mixing metric and imperial in one assembly creates maintenance headaches. Pick a system and stick to it.

Step 4 — Match the environment to the finish:
Indoor and dry → zinc plated. Outdoor and humid → hot-dip galvanized or A2 stainless. Marine or chemical → A4 stainless or coated alloy.

Step 5 — Confirm access and drive type:
If the fastener will be installed in tight or blind spaces, a hex socket (Allen) drive gives better access than a Phillips or hex head that requires open wrench clearance.

Step 6 — Consider serviceability:
If the joint will need to be opened and closed multiple times during a product’s life — for maintenance, transport, or upgrading — specify a bolt screw type and grade that supports repeated assembly without thread degradation.

---

Common Mistakes to Avoid

Experience with fastener failures across multiple industries points to the same set of repeated errors.

• Using a screw where a bolt is needed — If the joint carries structural load and the mating material is not strong enough to hold threaded engagement long-term, a nut-and-bolt system is always more reliable than a screw alone.
• Ignoring grade marking on bolts — Grade 2 bolts look identical to Grade 8 in a box. The radial line markings on the head matter. Never mix grades in a structural joint.
• Using zinc-plated fasteners in outdoor or marine environments — Zinc plating provides months, not years, of outdoor corrosion resistance. Outdoor assemblies need hot-dip galvanized, stainless, or specifically coated fasteners.
• Over-tightening screws in soft materials — In MDF, plastics, and aluminum extrusions, over-tightening strips threads quickly. The correct answer is a torque specification, not “as tight as possible.”
• Cross-threading by rushing — Starting a bolt screw by hand before using a tool is not optional in precision assemblies. Forcing the tool before confirming thread engagement is the single fastest way to ruin both parts.

Future Trends in Bolt Screw Technology

The bolt screw itself has been around for centuries. But the context in which it is specified, sourced, and assembled is changing rapidly.

Smart fasteners and torque monitoring are moving from aerospace into mainstream industrial use. Embedded sensors that confirm preload and detect loosening in real time are already deployed in wind turbines and critical infrastructure. As sensor costs fall, expect this to reach automotive and construction by the late 2020s.

Lightweight materials are changing thread design. As aerospace, automotive, and consumer electronics push into titanium alloys, carbon fiber composites, and high-strength plastics, thread engagement behavior in these materials requires rethinking the standard screw designs that were developed for steel. Thread-forming (rather than thread-cutting) screws have grown significantly in composite and plastic applications because they reduce cracking risk.

Sustainability and supply chain traceability are becoming procurement requirements rather than optional preferences. Environmental product declarations for steel fasteners, recycled-content requirements, and material traceability documentation are already being required by major Tier 1 automotive and construction contractors.

Anti-tamper and security fasteners are also growing as products need protection from unauthorized disassembly in consumer electronics, automotive components, and retail environments. Torx Plus, pentalobe, and proprietary drive forms have become standard in consumer electronics, and this trend is expanding into other segments.

Internal Resource Links

For further guidance on related fastener categories, the following internal resources are recommended:

• Bolt Screw – Full Product Collection
• Hex Bolts Specification and Grade Guide
• Fastener Materials and Coating Selection
• Machine Screws and Tapped Hole Assembly Guide
• Custom Bolt and Screw Sourcing for OEM Projects

FAQ

What is the difference between a bolt and a screw?
A bolt is secured with a nut through pre-drilled holes; a screw threads directly into the mating material without needing a nut.

A bolt requires access to both sides of the assembly — one side for the head, one for the nut. A screw only requires access from one side. That single difference determines almost everything else about when to use each one. Bolts generally carry higher structural loads because the nut distributes load across more surface area. Screws are faster to install and better suited to materials like wood, plastic, or pre-tapped metal components.

What does bolt screw grade 8.8 or Grade 8 mean?
Grade markings indicate the bolt’s tensile and yield strength — higher numbers mean stronger, harder steel.

On metric bolts, the first number is approximately one-tenth of the ultimate tensile strength in MPa, and the second is approximately the yield-to-tensile ratio. 8.8 means a tensile strength of ~800 MPa and a yield strength that is ~80% of that. On imperial Grade 8 bolts, the six radial lines on the head indicate an ultimate tensile strength of approximately 150,000 psi. Mixing grades in a bolted joint is a significant safety risk, especially in load-bearing assemblies.

Which is stronger — a bolt with a nut or a screw into a tapped hole?
A bolt-and-nut joint is generally stronger because both components provide thread engagement and distribute load from both faces.

A screw threaded into a tapped hole relies entirely on the strength and depth of the tapped threads in the mating material. If that material is aluminum, plastic, or thin-wall steel, the tapped hole becomes the weak point. A bolt-and-nut assembly avoids this because the nut material can be specified independently to match the load requirement. However, well-designed tapped assemblies in appropriate materials can achieve excellent strength — the key is confirming that thread engagement depth is sufficient (minimum 1.5x thread diameter for steel-into-steel).

What thread pitch should I choose — coarse or fine?
Coarse threads for general use and dirty environments; fine threads for precision joints and vibration-prone applications.

Coarse threads are more tolerant of damage, dirt, and installation speed — they are also less likely to cross-thread during assembly. Fine threads have more contact area per unit length and resist loosening under vibration better. In automotive and aerospace applications, fine-thread fasteners in critical joints often use additional anti-loosening methods like thread-locking compound, Nordlock washers, or castellated nuts with cotter pins as a secondary precaution.

How do I stop a bolt screw from loosening under vibration?
Use thread-locking compound, prevailing-torque nuts, spring washers, or fine-thread fasteners — depending on how permanently the joint needs to hold.

Thread-locking compounds (like Loctite 243 for medium-strength or 271 for high-strength) are the most common solution and work well in most temperature ranges. For joints that need disassembly, medium-strength compound is the right choice — high-strength versions can make removal extremely difficult without heat. Mechanical solutions like Nordlock or serrated flange bolts add friction resistance without chemical compounds, which is useful in applications where contamination is a concern or the joint will be opened frequently.

Can I use a stainless steel bolt with a mild steel nut?
Yes, but use anti-seize compound — stainless-on-stainless galling is actually the bigger risk to manage.

Stainless steel fasteners are prone to a phenomenon called galling, where the threads cold-weld together during tightening, making the bolt impossible to remove without destroying it. This is more common with stainless-on-stainless than stainless-on-mild-steel. Using a small amount of anti-seize lubricant on the threads resolves this problem. Note that anti-seize changes the relationship between applied torque and actual preload — torque specifications typically need to be reduced by around 15–25% when anti-seize is used.
