Barrel Nuts: The Complete Guide to Types, Sizes, Uses, and Installation

Barrel nuts are cylindrical, internally threaded fasteners that pair with a mating screw to create clean, strong, and serviceable joints — especially in furniture, display fixtures, and architectural hardware.

If you have ever assembled flat-pack furniture and noticed a small metal cylinder sitting inside a cross-drilled hole, that was almost certainly a barrel nut. They are one of those fasteners most people use without knowing the name. Yet once you understand how barrel nuts work, why they are specified, and where they perform best, the logic becomes obvious. The joint looks clean on both sides, it holds firmly, and it can be opened again later without destroying the material. That combination is harder to achieve than it sounds.

This guide covers everything — from what barrel nuts are and how they work, to size selection, installation steps, industry applications, and what the future of this fastener category looks like. Whether you are sourcing for a production line or figuring out a single repair, the goal here is to leave with no remaining questions about barrel nuts.

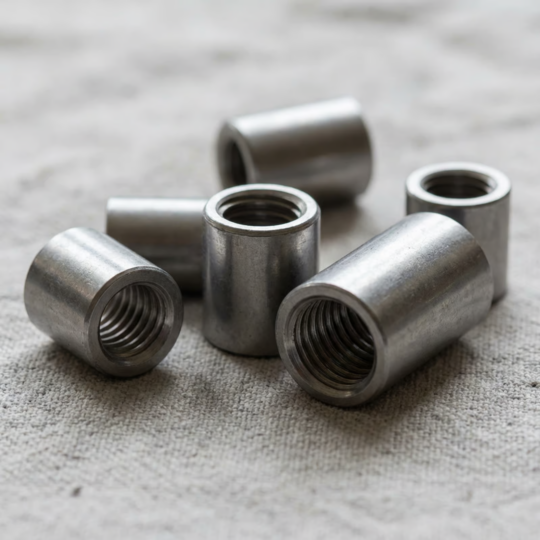

What Are Barrel Nuts?

Metallic fasteners, including a sex bolt (a machine screw and binding barrel) and individual binding barrels.

A barrel nut is a two-piece fastener system. One component is a cylindrical female-threaded body (the barrel), and the other is a matching male screw that threads into it from the opposite side of the connected material.

The barrel sits horizontally inside a pre-drilled cross-hole. When the screw is tightened, the two connected parts are pulled toward each other and held under clamping force. The result is a joint with no visible hardware on either face — just a clean, flat surface.

The naming gets a little complicated depending on who you ask. The same hardware family is sold under several terms:

• Barrel nuts — the most common generic name for the cylindrical female component
• Sex bolts — the name used in the United States for the two-piece barrel-and-screw system
• Chicago screws or screw posts — common in leather goods, bindery, and document assembly
• Binding posts — extended-barrel variants used specifically for books, albums, and thick stacks of material

The core principle is the same across all these names: a cylindrical barrel receives a screw to clamp two or more layers of material together.

How Barrel Nuts Work

The mechanics are straightforward, but the details matter more than they first appear.

A hole is drilled through the front face of the material for the screw. A second, perpendicular cross-hole is drilled into the side for the barrel itself. The barrel is inserted and rotated until its threaded opening aligns with the incoming screw hole. The screw is then inserted from the front and threaded into the barrel. As tightening progresses, the screw head and the barrel flange work together to clamp the joined surfaces.

What makes this system valuable is that neither the barrel nor the screw head protrudes past the material surface once installed correctly. You get a mechanical joint with controlled depth, minimal visual impact, and a clamping geometry that can be released and re-engaged multiple times.

That last point — reusability — is often the actual reason barrel nuts are chosen. A wood screw does the job once, maybe twice before the hole degrades. Barrel nuts hold their threads for far more cycles, which is why they dominate in flat-pack furniture, seasonal retail displays, and modular commercial interiors.

Parts of a Barrel Nut System

Understanding the individual components helps prevent the most common sourcing and installation mistakes.

The screw length is where most beginner mistakes happen. It needs to pass cleanly through the front material and engage enough barrel threads to produce real clamping — but not so long that it bottoms out before the joint closes. A useful formula from standard sizing references: required barrel length = material thickness + 1/16″ to 1/8″ clearance.

Types of Barrel Nuts

Not all barrel nuts are the same product. The right type depends on application, assembly method, and appearance requirements.

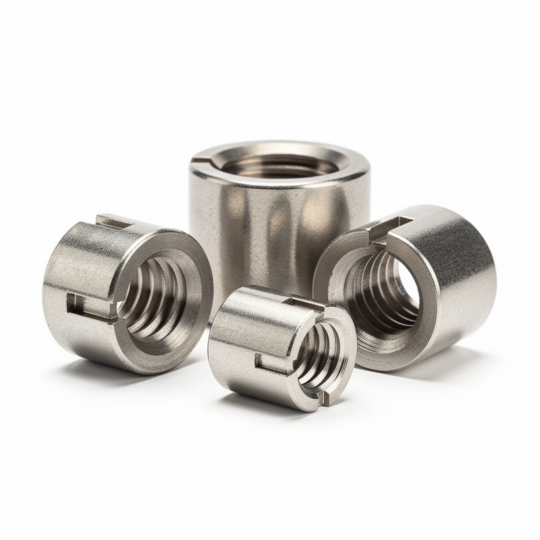

Standard Slotted Barrel Nuts

These have a visible slot on the end face that allows the installer to rotate the barrel into position using a flathead screwdriver. They are the most common style in furniture and general woodworking. The slot helps when access is limited or when the barrel needs to be guided into alignment from the outside of the component.

Knurled Architectural Barrel Nuts

Sometimes called architectural bolts, these have a knurled exterior that grips the hole wall on insertion, allowing one-sided assembly without needing to hold the barrel from the cross-hole opening. This is useful in sealed panels or finished products where access to the cross-hole is restricted.

Binding Posts / Screw Posts

These are extended-length barrel nuts designed to bind thick stacks of material — most commonly portfolios, swatch books, menus, and handmade books. Barrel lengths for binding posts commonly range from 1/4″ up to 3″, and heads are often decorative.

Decorative Chicago Screws

Closely related to binding posts, Chicago screws are used in leather goods, custom accessories, and visible hardware where the fastener itself is part of the product’s aesthetic. Finish options like brass, black oxide, and nickel are common.

Heavy-Duty Furniture Barrel Nuts

These prioritize clamping strength and dimensional consistency over appearance. They are used in bed frames, structural shelving, and other furniture where load matters more than visible finish. Thread sizes like 1/4″-20 and M6/M8 are typical in this category.

Standard Sizes and Specifications

Barrel nuts come in both metric and imperial thread standards, and choosing the wrong spec is a quick way to create a joint that either strips on first assembly or never clamps properly.

A practical note on hole sizing: the barrel body diameter determines the cross-hole drill size needed. Too tight, and the barrel will not seat. Too loose, and it will spin freely during screw tightening — which is the assembly version of a bad day. For an M5 barrel (~7.5mm body), the recommended clearance hole is 8mm. For an 8-32 barrel (~0.230″), use 1/4″ (0.250″).

Barrel Nuts vs Other Fasteners

The real reason to understand barrel nuts is to know when to use them and when not to. Here is how they compare to the alternatives a designer or buyer typically considers.

The pattern here is clear. Barrel nuts are not always the cheapest option, and they are not the fastest to install on a high-speed production line. But when both visual quality and serviceability are real requirements — not just preferences — barrel nuts usually earn their place in the design.

How to Install Barrel Nuts

Installation sounds simple. In practice, the majority of barrel nut failures come from three things: wrong hole positioning, incorrect screw length, and forcing alignment instead of correcting it.

Step 1: Drill accurate holes

Start with a through-hole for the screw on one face, and a perpendicular cross-hole for the barrel from the side. These two holes must intersect precisely. If the cross-hole does not line up with the screw channel, the screw will never find the barrel threads without force — and forcing it strips both.

Use a drill guide or jig wherever possible, especially in production environments. Freehand drilling works for single builds but introduces too much variability at scale.

Step 2: Insert and orient the barrel

Slide the barrel into the cross-hole. Rotate it until the threaded internal opening lines up with the incoming screw path. On slotted versions, use a flathead screwdriver to set the slot parallel to the screw channel — this confirms orientation visually.

Step 3: Start the screw slowly

Thread the screw in by hand first. If you feel resistance immediately, stop. That resistance means misalignment, not insufficient tightening force. Recheck the barrel orientation before using a tool.

Step 4: Tighten to correct clamping force

Snug, not maxed out. Over-tightening in engineered wood, MDF, or composite panels can crush the substrate around the cross-hole, which gradually widens the hole and eventually causes the joint to feel loose. The goal is controlled clamping, not maximum torque.

Step 5: Check after the first use cycle

For furniture or commercial fixtures that will be moved, shipped, or see vibration in early use, check the joint after the first use cycle. Thread engagement can sometimes settle slightly after initial loading. A quick re-tighten in the first week is a much better outcome than a loose joint after three months.

Common Mistakes to Avoid

Even experienced assemblers make these errors with barrel nuts — usually because they assume the system is more forgiving than it is.

• Wrong screw length: Too short means poor thread engagement and weak clamping. Too long means the screw bottoms out in the barrel before the joint closes.
• Forcing a misaligned assembly: If the screw does not turn easily, the barrel is probably not aligned. Forcing it strips threads immediately.
• Choosing barrel length from thread size alone: Thread size and barrel length are separate specifications. A correct thread size with the wrong barrel length will still fail in the assembly.
• Ignoring substrate material: The clamping force that works perfectly in solid hardwood can crush MDF. Adjust your tightening approach to the actual material.
• Skipping finish specification in exposed applications: A zinc-plated barrel nut in a high-humidity or outdoor environment will corrode. Stainless steel or appropriate-coated options exist for these conditions.

One rule covers most situations: if the assembly feels wrong, the answer is almost never “use more force.” The answer is almost always “check the specification, the hole, or the alignment first.”

Industry Applications

The same fastener solves different problems in different sectors. That specificity is what makes barrel nuts worth knowing in detail rather than treating them as a generic hardware item.

Furniture and Ready-to-Assemble (RTA) Products

This is the largest application area. Flat-pack furniture, bed frames, desks, bookshelves, and modular seating all use barrel nuts to achieve knock-down construction — meaning the product ships flat, assembles on-site, and can be disassembled again for moving or repair without replacing the hardware.

The furniture market exceeded $650 billion globally, and a significant portion of that market depends on flat-pack logistics. Barrel nuts are a structural reason flat-pack works at all, not just an aesthetic choice.

Retail Fixtures and Display Hardware

In commercial retail and exhibition environments, display structures need to look intentional, assemble quickly, and reconfigure with the season. Barrel nuts provide joints that are clean enough for branded environments while still allowing rapid disassembly.

Leather Goods and Bindery

Chicago screw variants of the barrel nut format are used in belts, straps, handbags, menus, swatch books, and custom accessories. Here, the fastener is often visible and becomes part of the design language. Decorative head styles and premium finishes are especially important in this segment.

Aerospace and Electronics

For applications where space is limited and a smooth exterior surface is necessary, barrel nuts offer precision fastening that standard hardware cannot always match. In aerospace subassemblies and compact electronics, the low-profile geometry of barrel nuts solves access and clearance problems.

Architectural and Interior Hardware

Custom joinery, partition systems, and decorative panel assemblies increasingly specify barrel nuts when a mechanical joint needs to be both hidden and serviceable. This is particularly relevant in commercial interiors that undergo renovation cycles.

Future Trends in Barrel Nuts

The fastener category itself is mature, but market expectations around it are changing in meaningful ways.

Sustainability and circular economy design are pushing brands toward products that can be disassembled, repaired, and reassembled — sometimes multiple times across their lifecycle. Barrel nuts are structurally aligned with this direction because they support exactly that kind of serviceability. As extended producer responsibility regulations expand in Europe and parts of Asia, furniture and fixture designs that use reusable fastening systems gain a practical advantage.

Customization and finish quality are increasingly non-negotiable in consumer-visible applications. Buyers are no longer satisfied with standard zinc plating when the product will be seen daily. Demand for black oxide, brass-tone, brushed stainless, and matte finish options has grown in lockstep with the broader premiumization trend in furniture and interiors.

Tighter dimensional tolerances in manufacturing are also a trend worth noting. As automated assembly and CNC drilling become standard in mid-tier furniture production, the hole accuracy requirements for barrel nut installation are more achievable at scale — which reduces one of the traditional barriers to specifying them in high-volume production.

The barrel nut is not going to be replaced anytime soon. The physics are sound and the application logic is strong. What is changing is where it gets used, what finishes are expected, and how seriously the market takes its role in repairable, sustainable product design.

Internal Resource Links

For more information on related fastener types and selection guidance, the following internal resources are recommended:

• Barrel Nuts – Full Product Collection
• Sex Bolts and Binding Posts – Specification Guide
• Fastener Finishes: Choosing the Right Coating for Your Application
• How to Choose the Right Fastener for Furniture Assembly
• Custom Fastener Sourcing for OEM and Contract Manufacturing

FAQ

What are barrel nuts used for?
Barrel nuts create clean, strong, and reusable joints in furniture, display fixtures, leather goods, and architectural hardware — anywhere a hidden yet serviceable connection is needed.

Are barrel nuts the same as sex bolts?
They are closely related and often grouped together, but the term “sex bolt” typically refers to the complete two-piece assembly (barrel plus screw), while “barrel nut” refers specifically to the female cylindrical component. Naming also varies by market and industry.

How do I choose the right barrel nut size?
Start with the thread size and material thickness. Use the formula: barrel length = material thickness + 1/16″ to 1/8″ clearance. Then check that the screw length provides full thread engagement without bottoming out.

Can barrel nuts be reused?
Yes. Barrel nuts are designed to be opened and re-engaged multiple times without degrading, provided threads are not stripped and the surrounding substrate is not damaged from over-tightening.

What is the difference between a barrel nut and a binding post?

A binding post is a specific style of barrel nut with an extended barrel length, designed to bind thick stacks of paper, leather, or other sheet materials. The functional principle is the same, but binding posts are optimized for greater stack depth and often have more decorative head styles.

What causes a barrel nut joint to feel loose?
The most common causes are incorrect screw length, over-tightening in soft material that crushes the hole over time, or initial misalignment during assembly that prevents full thread engagement. Checking all three in sequence usually identifies the problem.
