Nylon Screws: Complete Guide to Types, Sizes & Applications (2026)

Nylon screws are non-metallic fasteners machined from polyamide (PA66 or PA12) — lightweight, fully corrosion-proof, electrically non-conductive, and chemically resistant to most solvents, oils, and weak acids.

You’re mounting a PCB inside an enclosure that occasionally sees condensation. You reach for stainless steel screws — and six months later, galvanic corrosion has eaten the mounting holes and left streaks across the board. A $0.08 nylon screw would have prevented the whole failure. That scenario plays out daily in electronics labs, marine equipment bays, and food-processing lines across every industry that still defaults to metal fasteners out of habit.

Nylon screws occupy a specific, well-defined niche. They are not all-purpose replacements for steel. But in the environments where they belong — high moisture, electrical insulation requirements, chemical exposure, weight-sensitive assemblies — no metal fastener comes close. This guide covers every dimension of nylon screws: material grades, types, standard sizes (metric and imperial), industry applications, selection criteria, and the edge cases most spec sheets skip entirely.

What Are Nylon Screws?

Nylon screws are threaded fasteners manufactured from engineering-grade polyamide polymers, offering tensile strengths of 60–85 MPa and continuous service temperatures between -40°C and +120°C.

The base material matters more than most buyers realize. “Nylon” is a commercial umbrella that covers several distinct polyamide grades, each with different performance profiles. The two grades you’ll actually encounter in nylon screws are:

PA66 vs. PA12: The Material Behind the Screw

PA66 (Nylon 6,6) is the dominant grade for nylon screws and nylon bolts. It offers higher tensile strength (75–85 MPa), better stiffness, and lower moisture absorption than PA12. PA66 is the right choice for structural applications, higher-temperature environments, and anywhere dimensional stability under load matters. According to Wikipedia’s entry on polyamide, PA66 was one of the earliest synthetic polymers developed by DuPont and remains the industrial fastener standard for good reason.

PA12 (Nylon 12) absorbs less moisture — roughly 0.25% vs. PA66’s 1.5% at saturation — making it dimensionally more stable in wet environments. If your nylon screws will live in a submerged or repeatedly wet assembly (marine through-hulls, outdoor irrigation equipment), PA12 is worth the slight cost premium.

Both grades are classified under ASTM D4066, the standard specification for nylon injection-molded plastics, which defines minimum mechanical and thermal properties for each type.

Nylon Screws vs. Metal Screws: Head-to-Head

The comparison isn’t one-size-fits-all. Here’s how nylon screws stack up against common metal alternatives across the properties that actually determine material selection:

The single most important insight from that table: nylon screws are approximately 7× lighter than steel equivalents at the same thread size. In applications where you’re calculating grams — aerospace brackets, competition robotics, handheld medical instruments — that delta is significant.

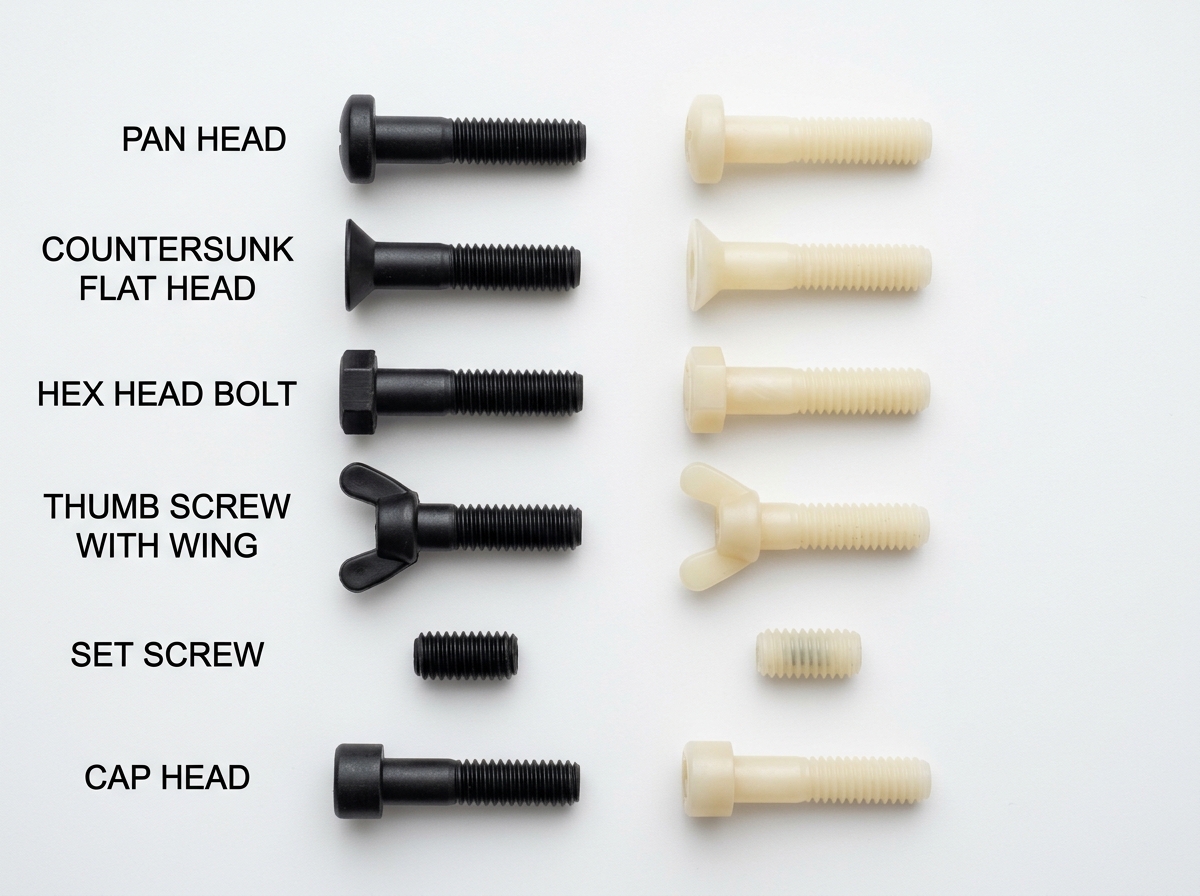

Types of Nylon Screws

Nylon screws come in six primary head styles, each optimized for a different drive method, load distribution, or flush-mount requirement.

Not all nylon screws are interchangeable. Choosing the wrong head type creates problems: a pan head where a countersunk flush mount is required leaves a protrusion that interferes with assembly; a thumb screw in a high-vibration assembly will back out. Here’s what each type is actually for.

Nylon Pan Head Screws

Pan head nylon screws are the most common variant — wide, low-profile head with a flat bearing surface that distributes clamping load across a larger area. Drive styles include Phillips, slotted, and Torx. In electronics assembly, pan head nylon screws are the default for PCB standoff mounting and chassis attachment precisely because the head geometry doesn’t concentrate stress at a single point on fragile FR4 board material.

Size range: M2 through M8 (metric), #2 through #10 (imperial). Standard lengths from 4mm to 50mm.

Nylon Countersunk (Flat Head) Screws

When the fastener needs to sit flush with or below the surface — enclosure panels, access covers, sliding assemblies — countersunk nylon screws are the answer. The 90° or 82° countersink matches standard machine countersinks. Common in food-processing equipment where protruding fastener heads create hygiene dead zones.

Nylon Hex Head Screws (Nylon Bolts)

Nylon hex head screws (often called nylon bolts) accept a standard wrench or socket for higher torque installation. Used in applications where hand-tightening isn’t sufficient — vibration-isolated motor mounts, panel assemblies with thick gaskets. Tensile strength here is the limiting factor: a standard PA66 M6 hex bolt handles roughly 1.2 kN before yielding. Design accordingly.

Nylon Thumb Screws

Nylon thumb screws feature an oversized knurled or winged head for tool-free hand tightening. Common in:
– Rack-mount electronics where panels need frequent access
– Battery cover plates on portable instruments
– Filter housings in lab equipment

The wing or knurled grip molded directly into the nylon thumb screw eliminates the risk of a lost tool in an inaccessible location.

Black Nylon Screws

Black nylon screws are PA66 fasteners compounded with carbon black pigment for UV stabilization and aesthetic matching in dark enclosures. The carbon black additive actually improves UV resistance significantly — undyed natural nylon screws will yellow and become brittle within 12–18 months of outdoor exposure; black nylon screws maintain properties for 5+ years in direct sunlight. If your application is outdoors or under UV lighting, always specify black nylon screws.

Nylon Set Screws and Captive Variants

Nylon set screws (cup point, flat point) are used specifically for shaft locking without marring — common in optical instrument mounts, encoder wheel hubs, and precision positioning stages where a steel set screw would scratch a delicate shaft surface. The lower hardness of nylon screws compared to steel is an advantage, not a liability, in these applications.

Nylon Screw Sizes and Thread Standards

Standard nylon screws are available in metric sizes from M2 to M12 and imperial sizes from #2-56 to 3/8″-16, with threads per ISO 68 (metric) or ASME B1.1 (unified inch).

Size selection involves three variables: thread diameter, pitch, and length. Getting any one wrong means either a fastener that strips under load or one that bottoms out before clamping.

Metric Sizes (M2–M12)

Metric nylon screws follow standard coarse thread pitches per ISO 68-1. The most stocked sizes in production:

M3 and M4 nylon screws account for roughly 70% of nylon screw demand in electronics and automation. If you’re stocking a shop for PCB assembly or panel fabrication, M3×8 and M4×10 pan head Phillips in PA66 will cover the majority of use cases.

Imperial / SAE Sizes (#2 through 3/8″)

Imperial nylon screws follow ASME B1.1 Unified Thread Standard. The ASME standards portal covers full dimensional tables. Common sizes:

One practical note most purchasing guides ignore: nylon screws have a higher coefficient of thermal expansion than metal — approximately 80–100 μm/m°C for PA66 vs. 11–13 μm/m°C for steel. In assemblies that cycle through large temperature swings, an M4 nylon screw will expand and contract roughly 7× more than the same M4 steel screw across a 50°C swing. Design preload accordingly, or the joint will feel loose when warm and overtight when cold.

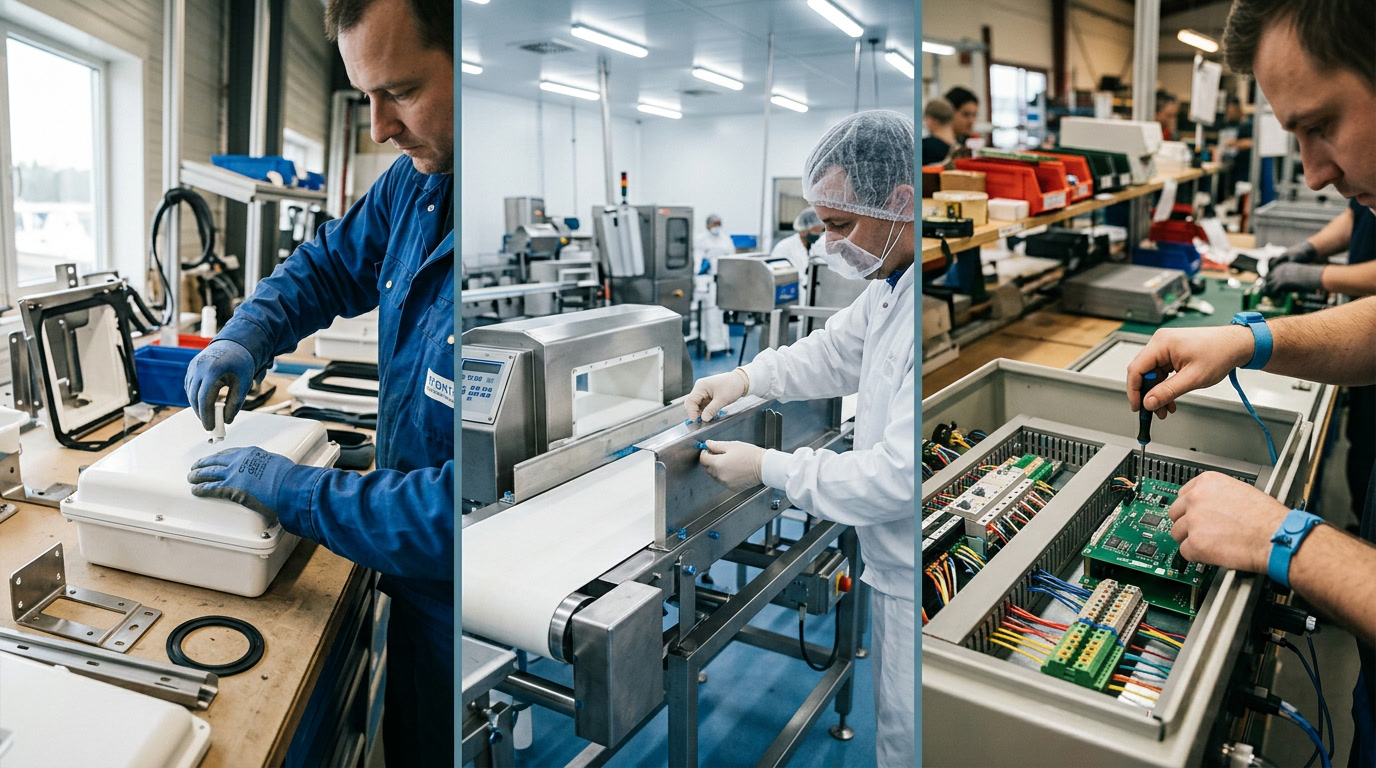

Industry Applications of Nylon Screws

Nylon screws are the fastener of choice in four core industries: electronics assembly, marine and outdoor equipment, food processing, and medical/laboratory instruments — anywhere metal corrosion, conductivity, or contamination is a failure mode.

Electronics and PCB Assembly

This is the largest single market for nylon screws. Nylon screws are used to mount PCBs to chassis, secure standoffs, attach transformers, and fasten covers on high-voltage compartments — specifically because they are electrically non-conductive. In high-voltage enclosures (>1kV working voltage), using metal screws near exposed buswork is a safety violation; nylon screws and nylon bolts with appropriate creepage distance are the engineered solution.

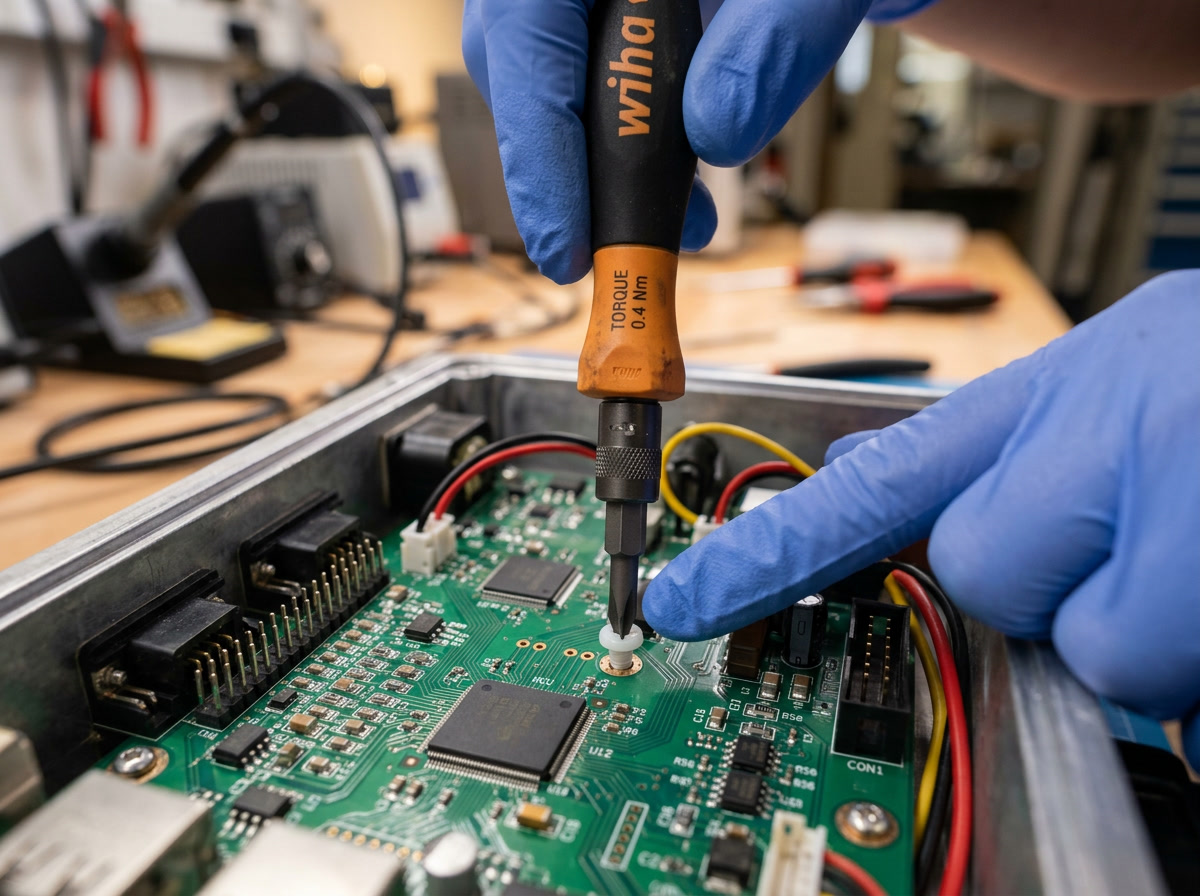

In practice, the most common failure mode we’ve seen in electronics assembly is overtightening nylon screws on PCB standoffs. The correct torque for an M3 PA66 pan head screw into a nylon standoff is 0.3–0.4 N·m. Most assemblers, accustomed to metal fasteners, apply 2–3× that — stripping the screw head or cracking the board. Torque-limited screwdrivers are not optional in high-volume PCB assembly lines using nylon screws.

Marine and Outdoor Environments

Salt water destroys zinc-plated steel fasteners within weeks and attacks stainless steel in crevice corrosion scenarios. Nylon screws are immune to salt spray, fully compliant with the marine environment, and appropriate for through-hull sensor mounts, bilge pump housings, navigation instrument brackets, and above-waterline trim panels.

Black nylon screws are standard for outdoor marine applications specifically for UV resistance. Natural (ivory) PA66 will degrade within 18 months of UV exposure; black nylon screws with carbon black UV stabilizer retain full mechanical properties for 5+ years in direct sunlight, validated by ASTM G154 UV weathering testing protocols.

Food Processing and Medical Equipment

Nylon screws meet FDA 21 CFR 177.1500 requirements for indirect food contact when manufactured from compliant polyamide resin — meaning they can legally contact food-contact surfaces in processing equipment. The absence of metallic contamination risk (no rust, no metal shavings from galling) is the primary driver. Secondary benefits: nylon screws won’t damage food-contact stainless steel surfaces in disassembly, and they are visible to metal detectors at the correct sensitivity settings (nylon itself is not detectable, which is why some facilities add barium sulfate — the detector rejects only known-metal parts).

In medical and laboratory equipment, nylon screws are used in MRI-compatible equipment, where any ferromagnetic material is prohibited, and in cleanroom assemblies where metal particles from galling are a contamination source.

Robotics and Competition Engineering

The robotics community — particularly FRC and VEX competition robotics — runs heavily on nylon screws because every gram of fastener mass matters. At approximately 1.14 g/cm³ vs. steel at 7.9 g/cm³, replacing 50 steel M4×10 screws with nylon equivalents saves roughly 28 grams. In a robot fighting a weight limit, that’s meaningful. The IFI-standard VEX #8-32 nylon screws used in competition robotics are effectively the commodity spec for the entire category.

How to Choose the Right Nylon Screw

Choose nylon screws based on four criteria in order: load requirements, temperature range, chemical environment, and head/drive style for your installation tooling.

Most specification mistakes happen because buyers jump directly to size without working through the decision tree. Here’s how to actually choose.

Step 1: Verify the Load Is Within PA66 Limits

Nylon screws are not structural fasteners. Before specifying nylon screws, calculate the shear and tensile loads on the joint. A rough rule: if a single nylon screw in your application carries more than 100N in sustained tension, you should either add fasteners, increase thread size, or reconsider whether nylon is the right material.

Published load capacities for PA66 nylon screws at 23°C:

Note: these values drop 30–40% at 80°C and 50–60% at 110°C. If your nylon screws will see elevated temperature (next to a heat sink, inside an enclosure with power dissipation), derate accordingly. Per Engineering ToolBox data on polyamide thermal properties, PA66’s tensile strength drops from ~80 MPa at room temperature to ~45 MPa at 100°C.

Step 2: Confirm the Temperature Range

-40°C to +120°C covers the overwhelming majority of applications. The edge cases that require attention:

• Automotive underhood: continuous exposure to 140–160°C exceeds PA66’s continuous rating. Consider glass-fiber-reinforced nylon or a different material entirely.
• Cryogenic applications: below -40°C, standard PA66 nylon screws become brittle. PA12 extends down to -60°C.
• Steam sterilization: autoclave cycles at 121°C for 15–20 minutes are borderline for PA66. In repeated autoclave applications, expect dimensional changes and torque loss over 50+ cycles.

Step 3: Check Chemical Compatibility

Nylon screws resist: water (both fresh and salt), oils, fuels, alcohols, dilute acids, weak alkalis, and most organic solvents. What nylon screws do NOT resist:
– Concentrated strong acids (sulfuric, nitric, hydrochloric at >10% concentration)
– Phenols and cresols
– Oxidizing agents (bleach, hydrogen peroxide at high concentrations)
– UV radiation (undyed natural PA66 only — black nylon screws are UV-stable)

If you’re unsure about a specific chemical, ASTM’s chemical resistance guide for polyamide provides immersion test data.

Common Mistakes When Specifying Nylon Screws

1. Overtightening. The most frequent failure mode. Nylon screws have a recommended tightening torque 5–10× lower than steel equivalents at the same size. Use a torque screwdriver.
2. Ignoring thermal expansion mismatch. In assemblies where nylon screws fasten metal to metal, the mismatch causes joint loosening over temperature cycles. Use a wave washer or thread-locking compound rated for plastics.
3. Selecting natural color outdoors. Only black (carbon-black stabilized) nylon screws should be used outdoors or in UV-exposed locations.
4. Mixing metric and inch threads in the same assembly. The thread pitches are close enough to partially engage — M6 will start into a 1/4″-20 hole but strip immediately under load. Use thread gauges or calipers to verify before assembly.
5. Expecting nylon screws to take repeated removal. Nylon threads have a service life of roughly 5–15 insertion/removal cycles before the threads deform. For frequently serviced panels, use metal inserts (thread-in or press-fit) in the tapped hole, then drive nylon screws into the metal insert.

Future Trends in Nylon Screws (2026 and Beyond)

Three forces are reshaping the nylon screw market in 2026: glass-fiber reinforcement for higher loads, bio-based polyamide resins for sustainability, and RFID-embedded fasteners for traceability.

Glass-Fiber-Reinforced Nylon Screws

Standard PA66 nylon screws are limited to roughly 80 MPa tensile strength. Glass-fiber-reinforced PA66 (typically 30% GF content) pushes that to 150–180 MPa — closing the gap with lower-strength stainless steel grades. GF-reinforced nylon screws are currently available in M4–M12 hex head styles and are gaining adoption in electric vehicle battery enclosures where the combination of high load, vibration resistance, non-conductivity, and lightweight is hard to replicate with any other material.

The tradeoff: GF-reinforced nylon screws are significantly less machinable, require higher-precision molding, and cannot be easily cut to length in the field. They also have a rougher surface finish that can cause slight galling in soft tapped holes.

Bio-Based Polyamide Fasteners

PA11, derived from castor oil rather than petroleum, is emerging as a sustainable alternative for nylon screws in consumer and food-contact applications. PA11 nylon screws offer similar corrosion resistance and non-conductivity to PA66 with a 50%+ reduction in carbon footprint per kilogram. As of early 2026, PA11 nylon screws carry a 40–60% cost premium over PA66, limiting adoption to sustainability-mandated procurement contexts. That premium will compress as production volume scales.

Embedded Traceability

Prototype RFID-embedded nylon screws — where a micro-antenna is molded into the head during manufacturing — are under evaluation by aerospace MRO (maintenance, repair, overhaul) programs. The concept: each fastener carries a unique ID readable through composite and plastic panels, enabling automated torque and service-life tracking without disassembly. Per Aviation Week’s 2026 industry outlook, first production-line deployment is targeted for 2027–2028. The non-metallic construction of nylon screws is what makes RF-transparent embedded traceability possible — steel fasteners block the signal.

Frequently Asked Questions About Nylon Screws

Nylon screws are best used when metal corrosion, electrical conductivity, weight, or chemical contamination would be a failure mode in the application.

When should you use nylon bolts instead of metal?

Use nylon screws and nylon bolts when the joint experiences: (1) continuous moisture or salt spray exposure where metal would corrode, (2) electrical isolation requirements between fastened components, (3) weight sensitivity where every gram matters, (4) food or medical contact where metal particles are a contamination risk, or (5) MRI or RF environments where metal is prohibited. When tensile loads exceed 500N on a single fastener, nylon screws are typically not the right choice — consider glass-fiber-reinforced grades or switch to metal with a non-conductive coating.

What is the maximum temperature for nylon screws?

Standard PA66 nylon screws have a continuous service temperature of -40°C to +120°C. Short-term excursions to 150°C are tolerable for a few minutes. PA12 extends the low-temperature limit to -60°C. Glass-fiber-reinforced nylon screws handle slightly higher continuous temperatures (~130°C). For applications above 140°C continuous, standard nylon screws are not appropriate — consider PEEK or other high-temperature polymers.

Can nylon screws be used outdoors?

Natural (undyed) PA66 nylon screws will degrade in UV within 12–18 months. Black nylon screws stabilized with carbon black maintain full mechanical properties for 5+ years of direct sunlight exposure. For outdoor use, always specify black nylon screws. For marine saltwater environments, both black and natural PA66 nylon screws resist corrosion equally — only the UV issue differentiates them outdoors.

What torque should I use for nylon screws?

PA66 nylon screws require significantly lower installation torque than metal equivalents. Approximate maximum installation torque: M3 = 0.3 N·m, M4 = 0.6 N·m, M5 = 1.0 N·m, M6 = 1.5 N·m, M8 = 3.0 N·m. Overtightening is the single most common cause of nylon screw failure in the field — the heads strip or the shank snaps. Use a torque-limited screwdriver for production assembly.

Are nylon screws food safe?

PA66 nylon screws manufactured from FDA 21 CFR 177.1500-compliant resin are approved for indirect food contact. Always verify the specific material certification with your supplier — not all nylon screws are made from food-contact-grade resin. For direct food contact (immersion in food or food liquid), consult the FDA regulations and request a Certificate of Compliance from the manufacturer.

What sizes do nylon screws come in?

Nylon screws are available in metric sizes M2 through M12 and imperial sizes #2-56 through 3/8″-16. The most commonly stocked sizes for electronics and general industrial use are M3, M4, and M5 in metric and #6-32 and #8-32 in imperial. Lengths typically range from 4mm to 100mm depending on head style and thread diameter. Custom lengths are available from most manufacturers with 500–1,000 piece minimum orders.

Can I cut nylon screws to length?

Yes, nylon screws can be cut with a standard bolt cutter, hacksaw, or carbide-tipped threading die. The material is soft enough to cut cleanly without specialized tooling. After cutting, lightly chamfer the thread lead with a deburring tool or fine file to ensure proper thread engagement. Unlike metal screws, there is no heat-affected zone concern when cutting nylon screws.

Conclusion

Nylon screws are a precision material choice, not a budget compromise. In the right environments — electronics enclosures, marine equipment, food-processing machinery, medical instruments, and weight-sensitive assemblies — nylon screws outperform metal fasteners on every metric that matters: corrosion immunity, electrical isolation, weight, and chemical resistance.

The key selection variables are: confirm the load is within PA66 limits (using the load tables above), verify your temperature range stays below 120°C continuous, match the head and drive style to your tooling, and always specify black nylon screws for any UV or outdoor exposure. For loads near the material limit, glass-fiber-reinforced nylon screws extend the range significantly without sacrificing the core non-metallic properties.
