Captive Screws: Complete Guide to Types, Applications & Selection (2026)

A captive screw is a fastener permanently retained in a panel or component so it cannot fall loose when disengaged, enabling fast, reliable assembly without lost hardware.

You’re mid-assembly on a server rack at 2 AM, and a standard screw drops into the chassis, bounces twice, and vanishes. Forty minutes later you’re still searching. That single scenario is why engineers in electronics, aerospace, and industrial manufacturing have standardized on captive screws for decades — and why demand continues to climb as panel assemblies get denser and access points get tighter.

This guide covers everything you need to know about captive screws: how they work, the main types on the market, which industries rely on them and why, and a practical selection framework so you can match the right captive fastener to your specific application. Whether you’re specifying captive screws for a high-volume OEM production line or troubleshooting an existing panel design, you’ll find actionable answers here.

What Is a Captive Screw?

A captive screw is a threaded fastener mechanically retained in its mating panel, bracket, or housing so that it stays in place even when fully backed out. Unlike a loose screw that can be completely removed and misplaced, a captive screw is constrained by a retaining ring, shoulder, collar, or press-fit insert that limits how far it can travel away from the panel. The threaded portion still engages and disengages a mating receptacle normally — the “captive” property only prevents complete separation from the parent component.

The concept is well-documented across fastener engineering literature. According to the Captive fastener — Wikipedia entry, captive fasteners include any variety of fastener permanently attached to a workpiece, covering both screws and nuts designed to stay with one half of the assembly.

How Captive Screws Work

The retention mechanism varies by captive screw design, but the core principle is consistent: a physical stop limits axial travel. In a spring-loaded captive screw, a coil spring pushes the screw head away from the panel when disengaged, while a retaining ring or shoulder catches on the underside of the panel hole, preventing full extraction. In a press-fit captive screw (often called a PEM screw or PEM captive fastener), a knurled shank is pressed into a prepared panel hole with an interference fit, permanently fixing the screw body relative to the panel. The threaded end then extends to engage the mating receptacle.

When properly installed:
1. The captive screw is finger-tightened or driven with a screwdriver/hex key into the mating thread.
2. When loosened, the screw backs out to a hard stop — it does not fall free.
3. The panel can be lifted, rotated, or swapped without chasing loose hardware.

This workflow improvement is the reason captive screws appear in any application where repeated access, vibration, or high assembly volume matters.

Captive Screw vs. Regular Screw

Most engineers encounter captive screws after one too many lost fasteners in a tight enclosure. The operational difference is more significant than the price difference.

For low-cycle, non-critical assemblies, a standard screw is fine. For any panel opened more than a few times per year, or in any environment where a dropped fastener causes downtime or safety risk, the captive screw pays for itself quickly.

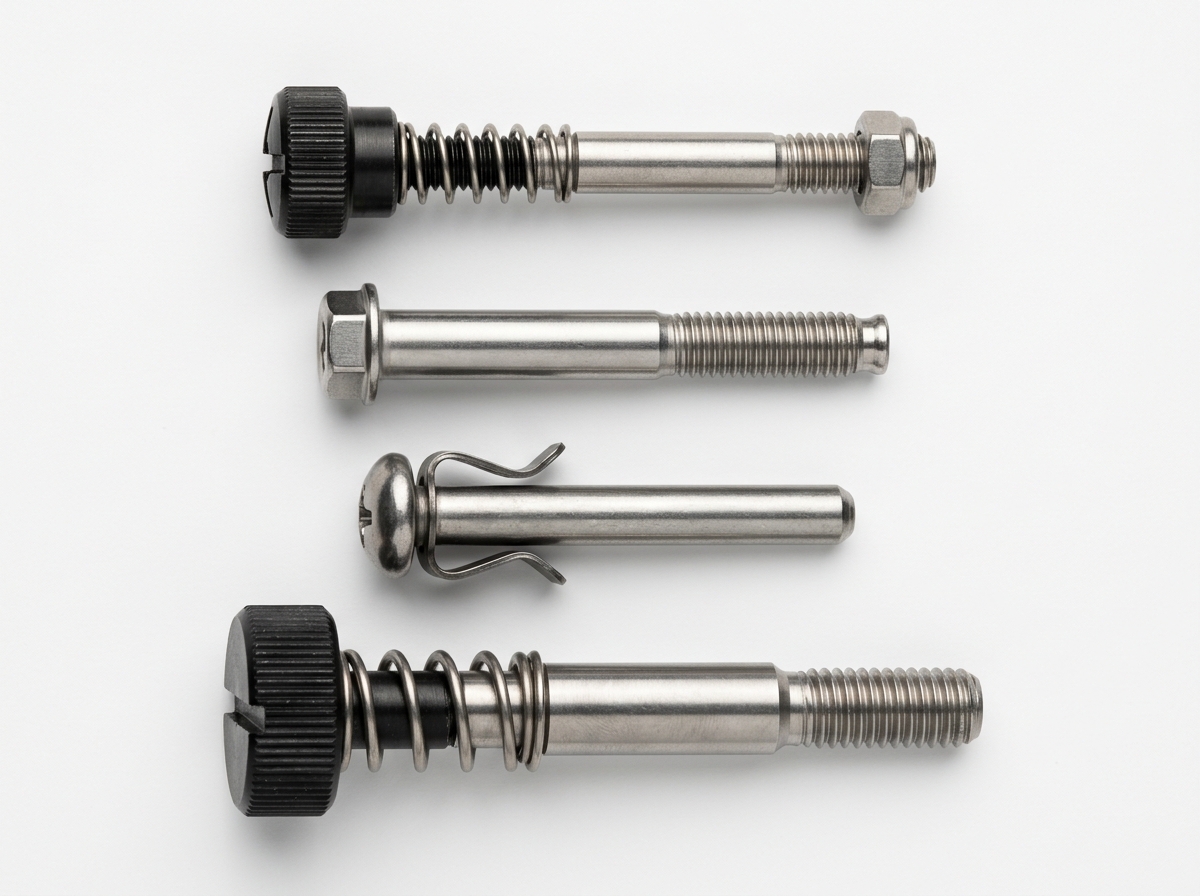

Types of Captive Screws

Not all captive screws work the same way. The four main families each have distinct installation requirements, load ratings, and panel thickness ranges. Choosing the wrong type is the most common specification mistake engineers make.

Spring-Loaded Captive Screws

The spring-loaded captive screw (sometimes called a spring captive panel screw or SEMS-style captive) uses a coil spring to hold the screw head proud of the panel surface when disengaged. The spring provides tactile confirmation of the seated position and helps the fastener self-align with the mating receptacle.

Key characteristics:
– The spring is factory-assembled onto the screw shank, captured between the underhead washer and a retaining ring.
– When tightened, the spring compresses and the head seats against the panel. When loosened, spring pressure pops the head back to the extended position.
– Available in quarter-turn variants for tool-free operation (especially common in data center and telecom equipment).
– Drive styles include Phillips, hex/socket head, slotted, and Torx.

Best for: Server panels, access doors, telecom enclosures, instrument panels. Any application requiring fast repeated access.

Avoid when: Panel thickness exceeds the spring’s working range or the installation torque would permanently compress the spring.

Press-Fit Captive Panel Screws (PEM Screws)

Press-fit captive screws — commonly called PEM screws after the PennEngineering brand — use a knurled or grooved shank that is pressed into a punched hole in a sheet metal panel. The undercut knurling locks into the panel material during installation, creating a permanent attachment. The threaded end protrudes to accept a nut or threaded standoff on the mating panel.

In practice, installation requires either a press or a squeeze tool generating enough force to fully seat the knurling into the panel. Aluminum panels typically require 200–600 lbf of insertion force; steel panels up to 1,200 lbf depending on diameter.

Key characteristics:
– Available in self-clinching versions (for thin sheet metal, ≥ 0.040 in / 1 mm) and broaching versions for harder alloys.
– Thread sizes commonly range from M2 to M10 (or #4-40 to 3/8-16 inch).
– Panel thickness requirements are tighter than other types — always verify the minimum panel thickness specified by the manufacturer.
– Once installed, the screw cannot be removed without damaging the panel.

Best for: High-volume sheet metal assemblies, electronics enclosures, PCB standoff applications.

Avoid when: Panel access for press installation is not feasible, or rework/removal is anticipated.

Snap-In Captive Screws

Snap-in captive screws use a barbed or springy retention feature that clips into the panel hole without any press force. They’re designed for tool-free installation — the retaining feature snaps into the panel hole with finger pressure. Disassembly can be done with a small tool or by squeezing retention tabs.

Key characteristics:
– Suited for lower-strength materials including plastic panels, thin aluminum (< 1 mm), and fiberglass.
– Lower pull-out force than press-fit types — not suitable for structural loads.
– Installation speed advantage in manual assembly lines: no press equipment required.
– Common in consumer electronics, HVAC filter frames, and medical device housings.

Best for: Plastic enclosures, consumer electronics, light-duty industrial panels, medical devices.

Avoid when: High vibration loads or significant pullout forces are expected.

Floating Captive Screws (Jack Screws / Blind Jack Screws)

The floating captive screw — often called a jack screw or blind fastener — allows a small amount of lateral float (typically ±0.5–1.5 mm) between the screw centerline and the panel hole center. This float compensates for hole-to-hole positional tolerances in multi-fastener panel assemblies where perfect alignment across all four (or more) screws simultaneously would otherwise be impossible.

Floating captive screws are standard in aerospace cable harness connectors (D-sub, MIL-spec connectors) and multi-board electronic assemblies.

Key characteristics:
– The screw body is captured within a floating retainer that itself is clinched or pressed into the panel.
– Floating range is engineered to match positional tolerance stack in the assembly.
– Common in AMLOK, DZUS, and custom military fastener systems.

Best for: Multi-fastener assemblies with tight positional tolerances, aerospace connector panels, D-sub connector hardware.

Avoid when: Single-fastener joints where float provides no benefit.

Captive Screw Type Comparison

Industry Applications of Captive Screws

Captive screws appear in virtually every manufacturing sector, but three industries account for the majority of high-volume usage. Understanding how each industry uses these fasteners highlights why the engineering requirements differ significantly.

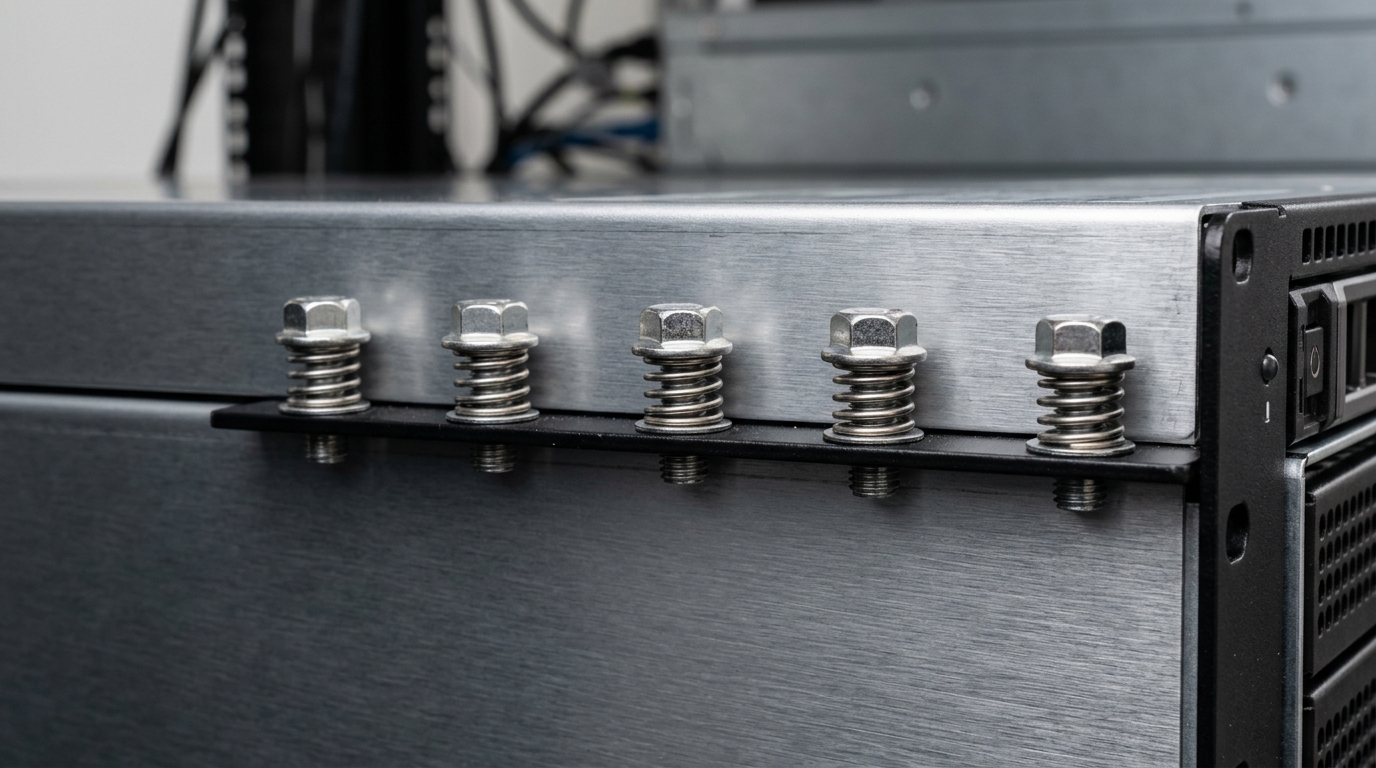

Electronics and Data Center Equipment

This is the largest market for captive screws. Servers, switches, storage arrays, and power distribution units all use captive panel screws on access panels, drive bays, and expansion slot covers. The requirements here are:

• Density: A 2U server may have 8–16 captive screws on the top panel alone. Removing and reinstalling them in a rack environment — where visibility is limited — is where the captive retention feature saves the most time.
• ESD considerations: In rack environments, carbon-steel captive screws with zinc-nickel plating are standard for conductivity and corrosion resistance.
• Torque values: Typical panel captive screws in data center hardware are tightened to 0.5–1.5 N·m, usually by hand or with an electric torque screwdriver.

Major ODMs including Supermicro, Dell, and HPE have standardized internal specifications for captive screw thread size, drive type, and spring travel — you’ll encounter these specs when supplying captive screws into tier-1 ODM supply chains.

Aerospace and Defense

Aerospace is the most demanding application environment for captive fasteners. AS9100-certified captive screws are the norm, with material certifications (MTRs) required for each shipment. The engineering constraints include:

• Vibration and shock: MIL-SPEC panel fasteners must withstand vibration profiles specified in MIL-STD-810. Spring-loaded and floating captive screws are both used, depending on whether joint pre-load or positional float is the primary requirement.
• Material: Titanium captive screws are used in weight-critical airframe applications. Stainless steel (A286, 17-4 PH) is common for avionics bays and electronics racks.
• Locking features: Many aerospace captive screws incorporate a separate prevailing-torque insert or NTF (non-turning-feature) to prevent back-out from vibration without relying on spring pressure alone.

Lost hardware in an aircraft assembly is a foreign object debris (FOD) event — the captive screw requirement in aerospace is partly a safety requirement, not just a convenience.

Automotive and EV Manufacturing

Modern vehicles use captive screws extensively in underhood electrical modules, door panels, HVAC housings, and increasingly in high-voltage battery enclosures for electric vehicles. The EV segment is the fastest-growing application area for captive fasteners, driven by:

• Battery module access: HV battery packs are serviced multiple times over a vehicle’s life. Captive screws on battery enclosure lids prevent lost fasteners during maintenance — a dropped screw inside an HV enclosure is a potential short-circuit hazard.
• Sealing requirements: Automotive captive screws often incorporate a bonded rubber seal washer (captive sealant screw) to maintain IP67 or IP69K ratings on sealed enclosures.
• Torque control: Automotive production torque specifications are tighter than most industrial applications; ±5% torque accuracy is typical, requiring calibrated assembly tools matched to the captive screw’s torque-to-tension characteristics.

How to Select the Right Captive Screw

Selecting a captive screw involves five decisions in sequence. Get one wrong and the fastener either won’t install correctly, won’t hold under load, or will be impossible to service in the field.

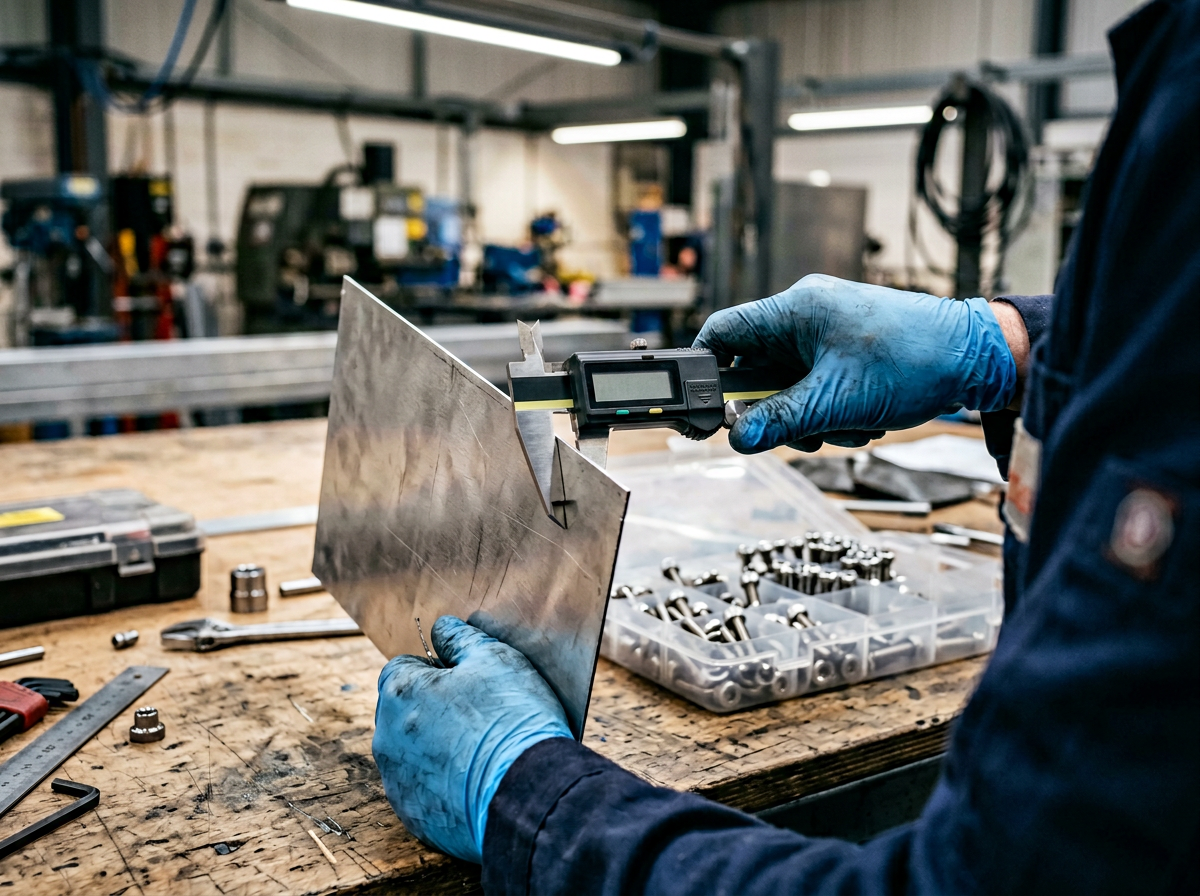

Step 1: Determine Panel Thickness and Material

Panel thickness drives the choice between press-fit and spring/snap-in types. Press-fit captive screws have a minimum panel thickness — typically 0.8–1.2 mm for self-clinching versions — because the panel must cold-form around the knurling to create the mechanical lock. Below this threshold, the panel won’t retain the screw.

For plastic panels, press-fit types are generally not suitable. Snap-in or overmolded captive screws are the better choice.

Panel material also matters for corrosion compatibility: a steel captive screw in an aluminum panel creates a galvanic couple. In marine or high-humidity environments, use aluminum or stainless steel captive screws with aluminum panels, or apply an isolating coating.

Step 2: Define Load Requirements

Captive screws carry three types of load: clamping (axial pull-through), shear, and vibration. Pull-through load is the critical spec for most applications.

Manufacturer datasheets specify minimum push-out force (for press-fit types) and minimum pull-out force as tested per ASTM B or IFI standards. Typical values range from 100 lbf for a #6-32 snap-in captive screw in 1 mm aluminum to 2,200 lbf for a 1/4-20 press-fit captive screw in 3 mm steel.

For vibration environments, check that the spring force (for spring-loaded types) is sufficient to prevent rattling at the expected excitation frequency. Spring stiffness values are specified in the manufacturer’s datasheet as a load-deflection curve.

Step 3: Select Drive Type and Access Requirements

For panels opened frequently by field technicians, quarter-turn captive screws (also called quarter-turn fasteners) offer the fastest operation — a 90° turn engages or disengages without tools. DZUS and CAMLOC are the most recognized brands in this category.

For production assembly (tightened once and rarely removed), standard hex socket or Torx drives provide better torque control and resist cam-out.

For applications where tools may not be available, thumb-screw head captive screws combine finger-tightenable operation with spring retention.

Step 4: Choose Material and Finish

Step 5: Verify Thread Engagement in the Mating Receptacle

Captive screws are only as good as their mating thread. Minimum thread engagement of 1× nominal thread diameter is the absolute floor for steel into steel; 1.5–2× diameter is recommended for aluminum receptacles. PEM standoffs, press-in inserts, and captive nut assemblies are commonly paired with captive panel screws to provide the mating thread.

Pro tip: When specifying captive screws for a new panel design, match the captive screw and its mating captive nut from the same manufacturer. Mixed-source pairings occasionally create subtle incompatibilities in thread pitch tolerance or self-clinch geometry that only show up during high-volume production.

Future Trends in Captive Fastener Technology (2026+)

The captive screw market is not static. Two intersecting trends are reshaping what engineers specify and what manufacturers produce.

Lightweight Materials and Miniaturization

The push toward thinner, lighter panels in consumer electronics, aerospace, and EV applications is forcing captive screw manufacturers to develop retention geometries that work in panels as thin as 0.5 mm. Traditional self-clinching captive screws require a minimum panel thickness that rules them out for these applications. Newer micro-captive fasteners use alternative retention geometries — laser-welded micro-collars, adhesive-bonded retainers — that work in 0.4–0.6 mm aluminum or carbon fiber composite panels.

According to the Captive fastener — Wikipedia overview, the captive fastener category continues to expand as applications in miniaturized electronics create new retention challenges.

For EV applications specifically, the trend toward structural battery enclosures (where the battery case is a load-bearing body panel) demands captive screws with higher clamping loads in thinner cross-sections — a combination that requires tightly controlled manufacturing tolerances.

Smart Fasteners and Industry 4.0

A niche but growing segment of the captive screw market involves RFID-embedded fasteners and torque-sensing captive screws. These smart captive screws allow assembly line MES systems to:
– Confirm that each captive screw has been tightened (torque threshold verification via embedded strain gauge)
– Track part provenance (the embedded RFID chip carries lot and material cert data)
– Detect loosening events in fielded equipment (wireless torque monitoring)

The cost premium is currently 15–40× over standard captive screws, limiting adoption to safety-critical joints in aerospace and medical devices. But as RFID component costs drop, expect to see smart captive fasteners in automotive and industrial IoT applications within the next 3–5 years.

A broader discussion of smart fastener trends, including torque sensing, is covered in community manufacturing forums like Reddit’s r/Fasteners community and increasingly in OEM engineering specifications.

FAQ: Captive Screws

What is the difference between a captive screw and a regular screw?

A captive screw stays permanently attached to its panel when loosened; a regular screw can be fully removed. In practice, this means a captive screw cannot be dropped or lost during disassembly. The trade-off is a higher per-unit cost and a more involved installation process (press-fit types require installation tooling). For panels accessed more than a few times per year or in vibration-heavy environments, captive screws are the better engineering choice.

What is an example of a captive screw?

The most common example is the spring-loaded captive panel screw used on server chassis covers — the type you quarter-turn with your thumb to pop a panel off a rack-mounted server. Another familiar example is the PEM-style (press-fit) captive screw used in sheet metal electronics enclosures, where the screw is pressed permanently into the front panel and engages a threaded standoff on the chassis when the panel is installed. Captive screws are also widely used as a type of captive fastener in aerospace connector D-sub hardware.

What is an alternative to captive screws?

The most common alternatives are: (1) captive nut assemblies (where the nut is retained instead of the screw), (2) quarter-turn fasteners like DZUS or CAMLOC that use a stud and receptacle system without threading, (3) snap-fit clips for light-duty plastic enclosures, and (4) magnetic panel latches for toolless access without any fastener. Each alternative sacrifices some combination of clamping load, vibration resistance, or sealing capability. For structural joints, captive screws remain the dominant solution.

How do captive screws work in practice?

A captive screw works by using a physical retention feature — a spring, retaining ring, shoulder, or press-fit collar — to limit how far the screw can travel away from the panel. The screw threads still engage and disengage the mating receptacle normally. The only difference from a standard screw is that it physically cannot fall free of the panel when fully backed out. Installation of press-fit types requires a small amount of force from a press or squeeze tool; spring-loaded types snap into a pre-punched panel hole by hand.

What thread sizes are captive screws available in?

Standard captive screws are available in both metric and unified inch thread series. Common metric sizes range from M2 (miniature electronics) to M8 (industrial panels). Common inch sizes span #4-40 through 1/4-20. Custom captive screws can be produced for specialty thread forms (BSF, BA, MJ aerospace series) with appropriate minimum order quantities. Panel fastener specialists like McMaster-Carr stock the most common sizes off the shelf; custom or tight-tolerance versions require 4–8 week lead times.

Can captive screws be installed in plastic panels?

Yes, but the retention method must match the plastic’s properties. Self-clinching press-fit captive screws require ductile metals; they will crack or deform brittle plastics. For plastic panels, snap-in captive screws with barbed retention features, or heat-installed threaded inserts (which then retain a separate screw via a retaining ring), are the correct approaches. Material selection for the captive screw itself should also account for galvanic and chemical compatibility with the plastic.

What is a PEM captive screw?

PEM is a brand name by PennEngineering (Penn Engineering & Manufacturing Corp.), widely used generically to describe any self-clinching press-fit captive fastener. A PEM captive screw specifically refers to a threaded screw permanently attached to a sheet metal panel via a knurled press-fit shank. The term is used similarly to how “Velcro” is used for hook-and-loop fasteners — it’s a brand name that became the industry shorthand. When specifying in a drawing or BOM, it’s better to call out the specific PEM part number or functional equivalent to avoid single-source constraints.

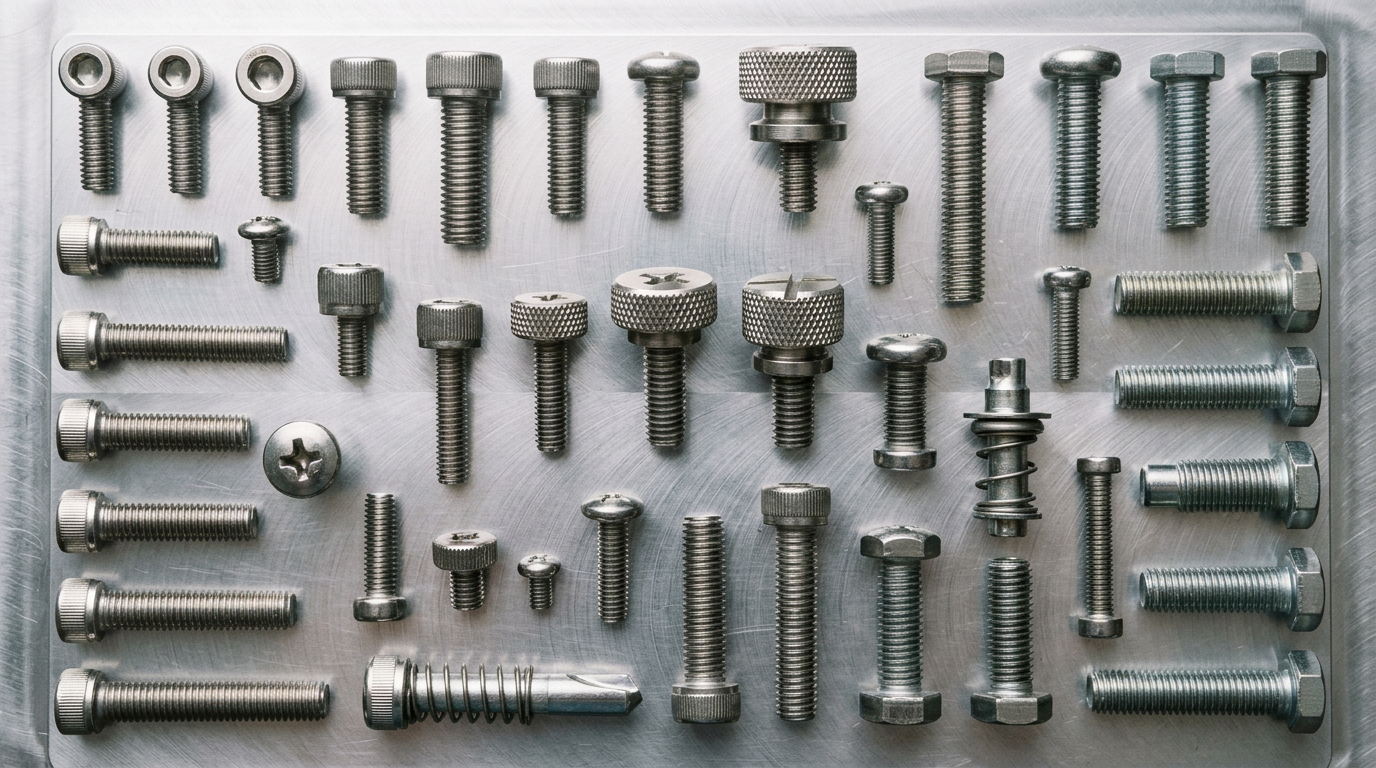

Conclusion

Captive screws solve a deceptively expensive problem: hardware loss during assembly and maintenance. The higher per-unit cost disappears quickly when you account for assembly time savings, eliminated FOD incidents, and reduced service call duration in fielded equipment.

The right captive screw for your application depends on four factors working together — panel thickness, expected load, access method, and environment. Start with the panel material and thickness (this eliminates most press-fit types from thin or non-metallic panels), then work through drive type and material before finalizing the thread spec. When in doubt, request samples and test under your actual installation conditions — captive screw retention force varies significantly between manufacturers even for nominally identical specifications.

For custom captive screws or high-volume OEM supply of standard types, explore our full captive screw catalog to find the exact retaining geometry, thread size, and finish your application requires.
