Sex Screw (Sex Bolt): Complete Guide to Types, Uses & Installation

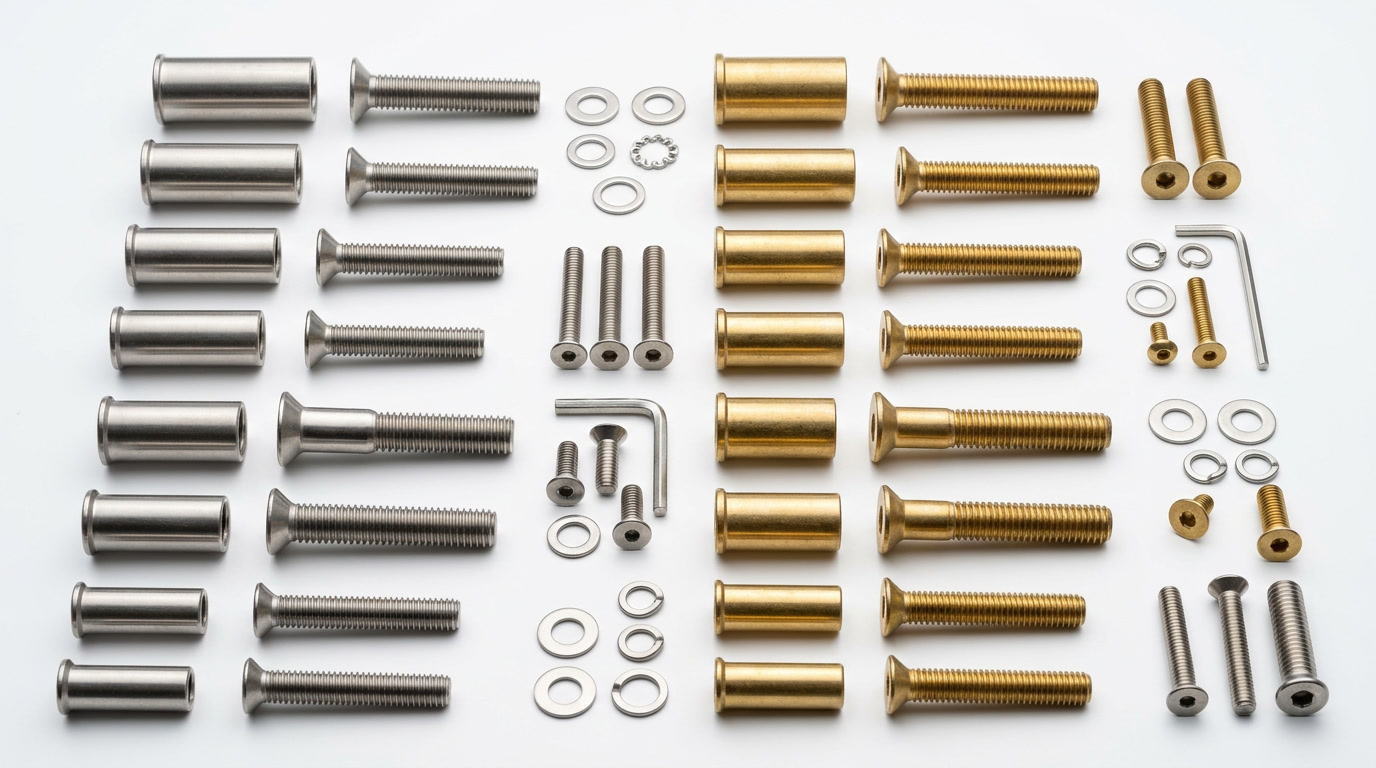

A sex screw is a two-piece fastener — a hollow barrel-shaped nut with internal threads paired with a matching machine screw — designed to join layered materials flush on both faces, with installation from one side only and unlimited reassembly.

Finding the right fastener for a through-bolt connection that looks clean on both faces is harder than it sounds. Standard bolts leave a hex nut protruding on the back. Rivets are permanent. Pop rivets split under torque. That’s the exact gap a sex screw fills: the barrel seats into a clearance hole from one face, the mating screw enters from the other, the two halves draw tight, and both faces end up flush — no exposed shank, no visible nut.

Whether you’re a leatherworker sourcing Chicago screws for a holster project, a furniture manufacturer specifying barrel-bolt KD joints, or an industrial buyer requesting a custom sex screw in 316 stainless for architectural panels, this guide covers the full picture: naming variants, material grades, drive types, grip-range sizing, correct installation torque, and where sex screw technology is heading through 2026.

What Is a Sex Screw?

A sex screw consists of two mated halves — a flanged cylindrical barrel (the nut) with internal threading, and a machine screw that passes through the workpiece and threads into the barrel — clamping the material between the two flanges with no exposed thread on either surface.

The term is used interchangeably with “sex bolt” in most catalogs. Depending on the industry and region, you’ll encounter several names for the same fastener:

Understanding that a sex screw, sex bolt, and Chicago screw are the same part prevents sourcing confusion when comparing supplier catalogs across industries.

The Two Halves Explained

Barrel (female half): Cylindrical body, externally smooth, with a flanged head that rests flush against the surface material. The internal thread runs the full depth of the bore. The barrel OD (outer diameter) determines the through-hole size required.

Mating screw (male half): Typically a flat-head or pan-head machine screw. When flat-head, it requires a matching countersink so the head sits flush with the entry face. The screw shank length equals — or is very close to — the material thickness being joined.

Why “Sex” in the Name?

The “sex” prefix carries no suggestive meaning in a fastener context. The word comes from Latin secare (“to cut” or “to join”), denoting a fastener made of two joined parts. An alternative etymology traces it to Latin sex (“six”), referencing the six-thread engagement specification in early variants. Either way, the name has been standard in engineering documentation since the early 20th century. The popular term “Chicago screw” is geographic — the fastener was widely manufactured and distributed by Chicago-area bookbinding hardware companies from the late 1800s onward.

According to Sex bolt — Wikipedia, the fastener consists of a mated machine screw and barrel-shaped nut, with the nut’s flange bearing against one face of the assembly while the screw head bears against the other.

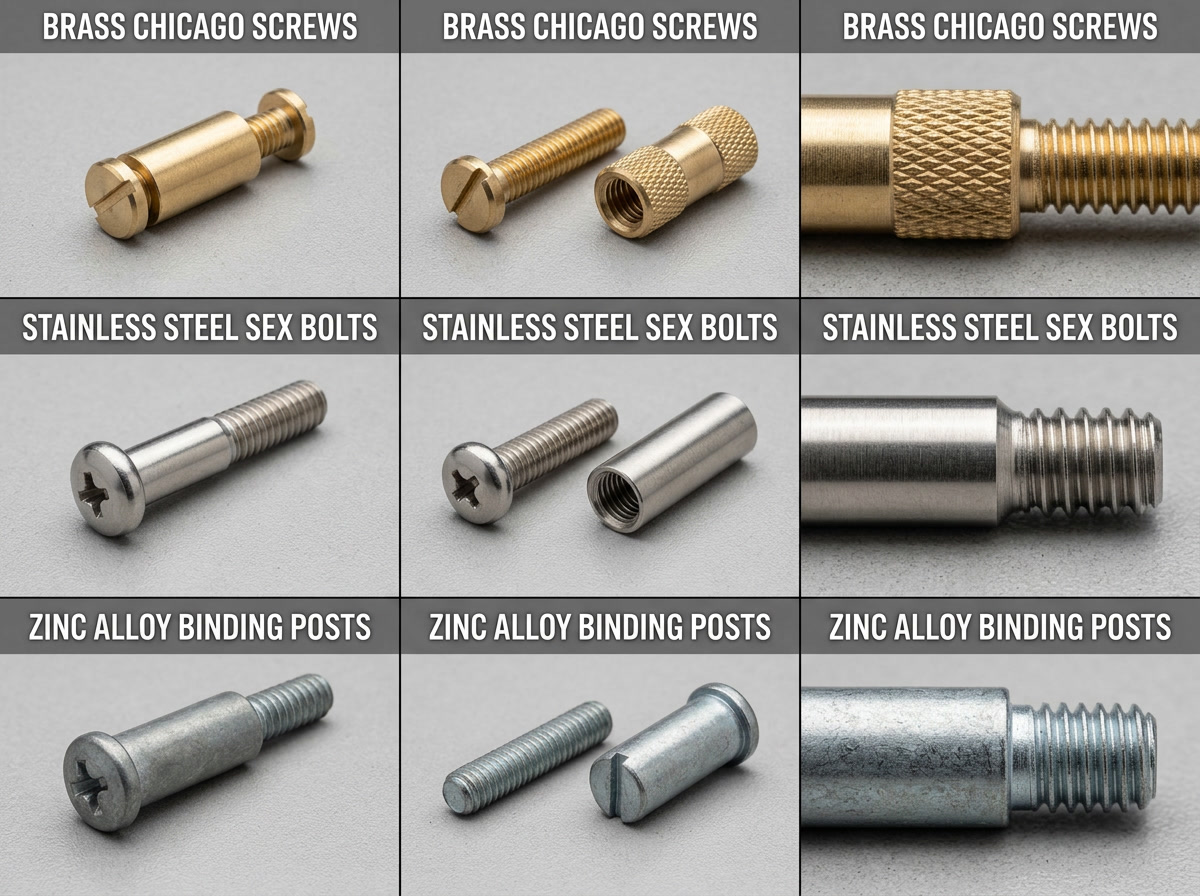

Sex Screw Types by Material

The most important sex screw selection variable is material grade — it determines corrosion resistance, torque limit, weight, and cost. Stainless steel is the default for industrial use; brass dominates craft and decorative markets.

Stainless Steel Sex Screws (304 and 316)

Stainless steel sex screws are the workhorse grade for commercial, industrial, and outdoor applications. 304 stainless (18-8) handles most environments; 316 stainless adds molybdenum for superior resistance to chlorides, salt spray, and acids — essential for marine hardware, coastal architectural panels, and food-processing equipment.

Tensile strength: 500–700 MPa depending on alloy and processing. Thread stripping torque on M5 stainless barrel: approximately 4.5 N·m before permanent deformation. In practice, assembly torque should not exceed 3.0 N·m for M5 and 5.0 N·m for M6.

The vast majority of sex screws used in industrial and architectural contexts are A2 (304) or A4 (316) stainless. These grades machine cleanly, hold thread engagement through hundreds of reassembly cycles, and require no surface treatment.

Brass Sex Screws

Brass is the traditional sex screw material for leatherwork, bookbinding, and decorative hardware. It offers moderate corrosion resistance (better than bare steel, worse than stainless), excellent machinability, and a warm aesthetic that takes plating well — gold, nickel, antique brass, and black oxide finishes are all readily available.

Key limitation: brass is softer than steel. Tensile strength: approximately 250–350 MPa for C36000 free-machining brass. Maximum torque for M5 brass barrel: approximately 1.0–1.5 N·m. Exceeding this crushes the barrel thread.

Sex screws used in leathercraft are almost always brass 1/4-20 (UNC) or M4. The 1/4-20 thread is dominant in North American craft supply chains; M4 metric is standard in European leatherwork supply.

Zinc Alloy (Zamak) Sex Screws

Zinc alloy sex screws are the lowest-cost option — found in scrapbooking kits, display fixtures, and low-load craft assemblies. Zamak (Zinc Aluminum Magnesium Copper alloy) dies well and accepts plating inexpensively, which is why it appears in decorative craft hardware.

Not recommended for structural or load-bearing applications. Zinc alloy sex screws have low tensile strength (approximately 280 MPa for Zamak 3), are susceptible to stress cracking if overtightened, and degrade under repeated assembly-disassembly cycles. Grip range for Zamak sex screws is typically 3–12 mm.

Aluminum Sex Screws

Aluminum sex screws (6061-T6 or 7075-T6) appear in applications where weight matters more than strength budget: aerospace tooling jigs, exhibition display systems, and premium EDC gear. Weight savings versus 316 SS: approximately 65% lighter for the same volume.

The tradeoff is lower hardness — aluminum sex screws are typically used in single-use or low-cycle assemblies where the thread won’t be re-engaged many times. 6061-T6 works in static assemblies; 7075-T6 handles higher-cycle tooling.

Drive Types for Sex Screws

The mating screw head drive type determines how much torque can be applied without stripping, and how well the drive survives repeated cycles.

For any sex screw that will be removed and reinstalled regularly, hex socket or Torx drive is the correct choice. Phillips drive is convenient but cams out under moderate torque, progressively destroying the drive recess over repeated cycles.

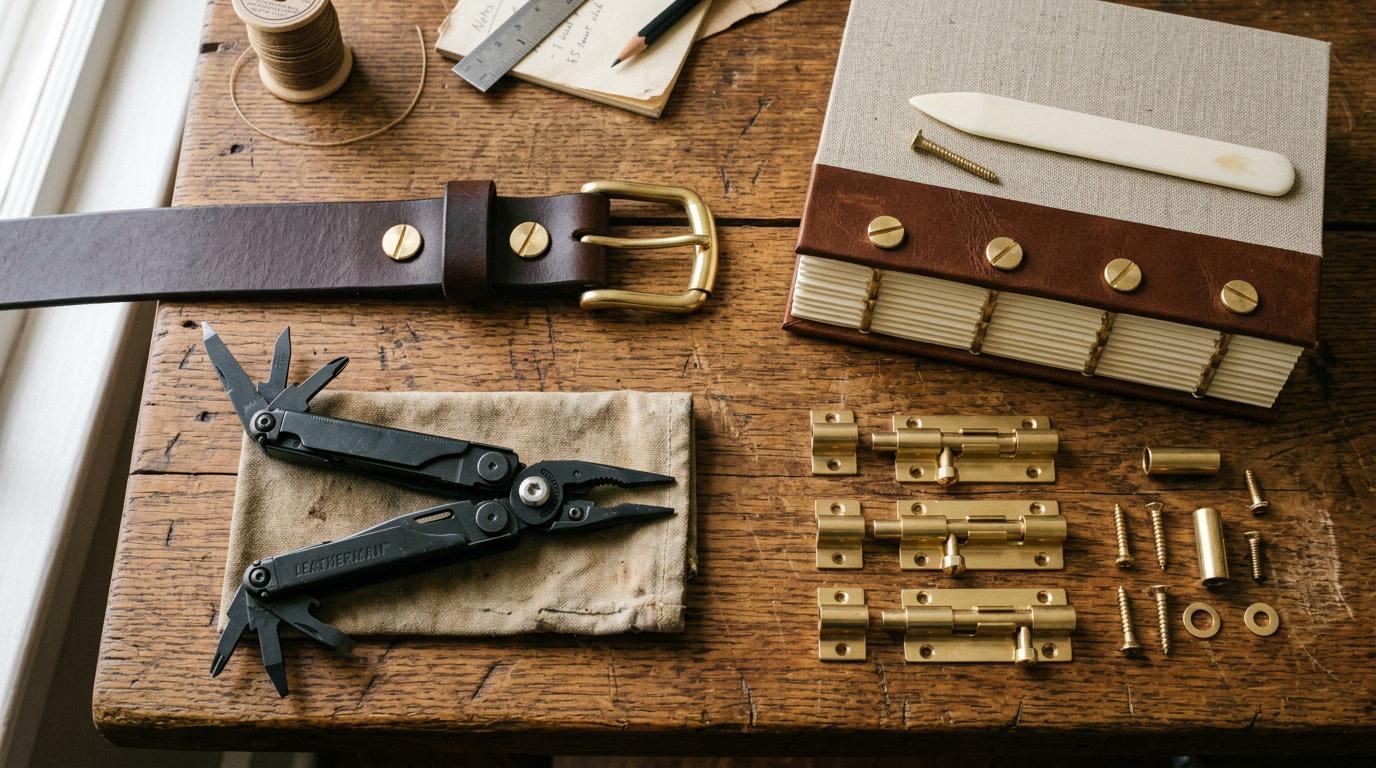

Industry Applications of Sex Screws

Sex screws are used in every industry where a through-joint must be flush, reusable, and accessible from one face — leatherwork, bookbinding, furniture, multi-tools, electronics, and architectural hardware.

Leatherwork and Saddlery

Leatherwork is the largest craft-market segment for sex screws (Chicago screws). Belt loops, holsters, bags, knife sheaths, and saddle hardware all rely on sex screws because leather compresses under load — and sex screws can be sourced in calibrated grip lengths that match leather stack thickness precisely, without shimming or modification.

Standard sizes for single-layer veg-tan leather (3–4 mm): 3 mm or 4 mm barrel length, 1/4-20 UNC or M4 thread. For a doubled-over leather belt (6–7 mm total): 6 mm barrel. For a leather-over-liner assembly with a kydex backer (7–10 mm total): 8–10 mm barrel.

A sex screw in a holster panel might be removed 10–20 times over the life of the holster for panel swaps, fitting adjustments, or finish changes. That reassembly frequency rules out rivets and makes the sex screw the only practical choice.

Bookbinding and Stationery

Sex screws have been used in bookbinding since the late 19th century — this is where the “Chicago screw” name originated. Today they’re found in:
– Layflat screw-post binders (the screw post allows pages to be added or removed)
– Fabric swatch and material sample books
– Photo album post assemblies
– Legal and engineering document binders with variable page count

Bookbinding sex screws are typically 1/4-20 UNC thread (North American market) or M6 (European market), brass or zinc, pan-head mating screw with Phillips or slotted drive. Barrel lengths are sold as extension sets: 6 mm, 10 mm, 15 mm, 20 mm, and 30 mm are standard for variable document thickness.

Furniture and Flat-Pack (KD) Assembly

In knocked-down (KD) furniture — flat-pack shelving, metal-frame chairs, modular office partitions, and exhibition display systems — sex screws provide a cleaner aesthetic than through-bolts with visible nuts, and allow full disassembly without degrading the joint.

Standard furniture-grade sex screw spec: M6 × 15–30 mm barrel (matched to panel thickness), hex socket drive, zinc-plated carbon steel or A2 stainless. Some manufacturers use a captive-barrel design where the barrel press-fits into a pre-installed insert, leaving only the flush screw head visible.

Unlike cam-lock furniture fasteners (which are essentially one-way and loosen over time), sex screws can be retorqued after the joint relaxes, giving them a service-life advantage in high-use furniture.

Multi-Tools and EDC (Everyday Carry) Gear

Pocket multi-tools — Leatherman, Victorinox, and custom makers — use sex screws as pivot fasteners. The barrel passes through the tool body and the pivot plate; the mating screw (typically Torx T10–T15) controls preload on the pivot. Pivot sex screws are torqued to precise preload specs (usually 0.8–1.5 N·m) to balance smooth action against blade wobble.

Sex bolts in multi-tool pivots are a recurring topic in the EDC community because they can be adjusted for wear — a pivot that becomes loose after years of use can be re-tightened or replaced with a longer barrel sex screw to restore factory feel. Sex bolt use in multi-tools is well-documented in enthusiast forums where users disassemble and service their tools.

Architectural and Industrial Panel Hardware

Flush-pull handles, plate hinges, sign mounting brackets, and access panel fasteners in commercial architecture frequently specify M8–M12 sex screws in A4 (316) stainless. The design driver is dual: aesthetic flush face on both exposed surfaces, and periodic maintenance access without disturbing the structural panel.

In industrial panel assemblies — control cabinet doors, equipment covers, junction box lids — sex screws allow service technicians to remove panels fully with one hex key, without needing access behind the panel. This is a meaningful advantage in confined machine rooms.

How to Choose the Right Sex Screw

Match barrel length (grip range) to your total material thickness, select thread diameter by load, choose drive type by reassembly frequency, and match material grade to environment.

Step 1: Measure Total Stack Thickness

The barrel length of the sex screw must equal — or be 0–1 mm shorter than — the combined thickness of all layers being clamped:

• Measure each layer at the hole location (leather compresses; measure under light load)
• For compressible materials (rubber, foam, leather), use 85% of unloaded thickness
• Add all layers; select the next available barrel length at or just below that total

A barrel that’s 1–2 mm too long will leave a visible gap at the joint — the screw reaches full thread engagement before the flanges contact the material. A barrel 0.5 mm too short is acceptable; the mating screw simply engages fewer threads at full depth (still adequate if minimum thread engagement is met).

Step 2: Select Thread Diameter by Load

For most leatherwork: M4 or 1/4-20. For furniture: M6 baseline. For architectural or industrial: M8 minimum.

Step 3: Choose Drive Type for Your Reassembly Frequency

• < 10 reassembly cycles (lifetime): Phillips or slotted is acceptable and lowest cost
• 10–100 cycles: Hex socket (Allen); the drive engagement survives the cycle count
• 100+ cycles: Torx; highest torque efficiency and longest drive life
• Precision preload required (multi-tools, pivots): Torx only — the consistent cam-out threshold makes torque control accurate

Step 4: Match Material Grade to Environment

Five Common Sizing Mistakes

1. Ordering by name only, not specification. “Chicago screw” and “sex bolt M5×10” are not interchangeable. Always specify: thread standard, thread diameter, barrel length, head type, drive, and material.
2. Confusing barrel OD with thread diameter. An M5 sex screw barrel may have an OD of 8–10 mm; the 5 mm refers to the thread bore, not the barrel’s outer dimension. Drill your through-hole to barrel OD + 0.1–0.2 mm clearance.
3. Mixing UNC and metric threads. 1/4-20 UNC (6.35 mm) and M6×1.0 (6 mm) look almost identical. They will cross-thread if mixed. Check the thread standard on the supplier datasheet.
4. Overtightening brass barrels. Brass strips at roughly 40–60% of the torque that stainless handles. Stop at snug + ¼ turn, or use a torque driver set to 0.8–1.2 N·m for M4 brass.
5. Choosing barrel length without accounting for countersink depth. A flat-head mating screw’s countersink recesses into the surface material — which effectively reduces available grip by 0.5–1.5 mm. Factor in the countersink depth when calculating the required barrel length.

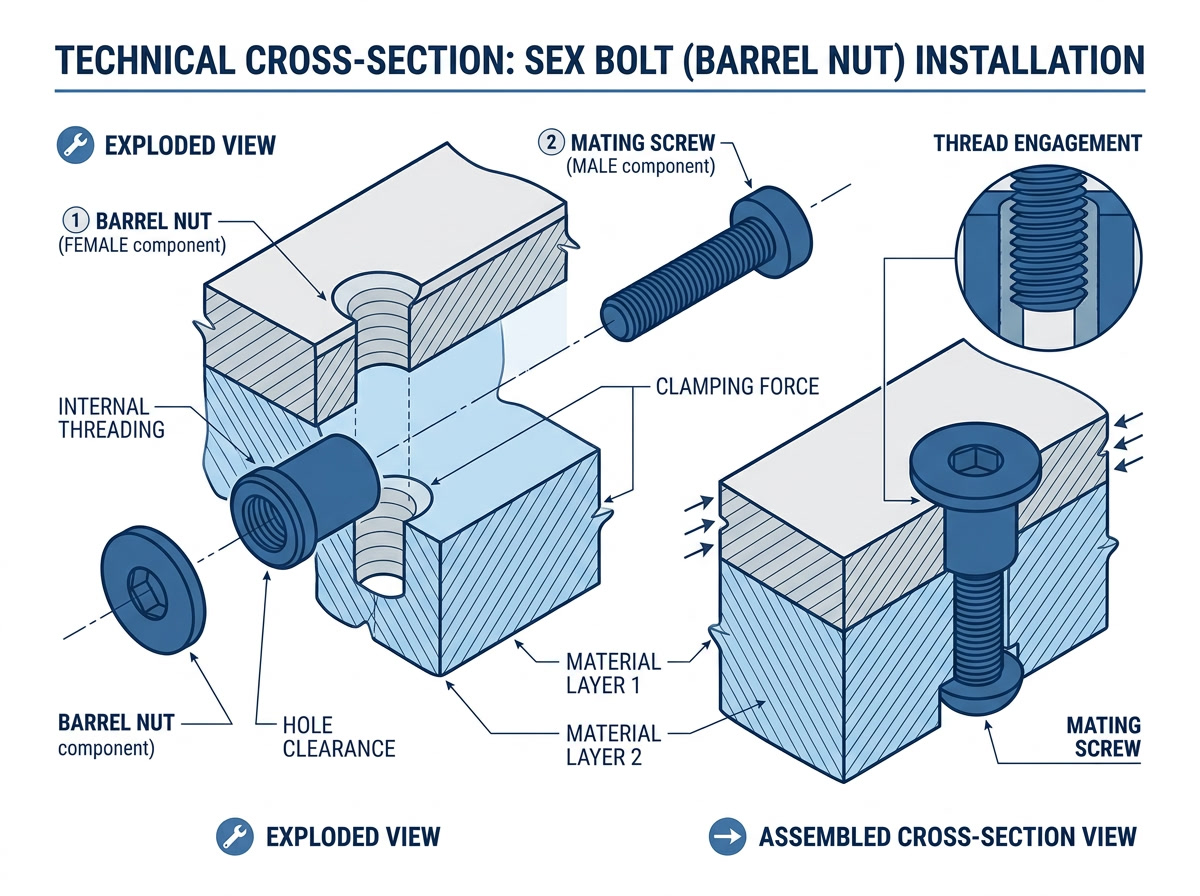

Installation Instructions

Installing a sex screw correctly the first time prevents cross-threading, galling (in stainless), and premature loosening.

Tools required:
– Drill with correct-size bit (barrel OD + 0.15 mm)
– Countersink bit matched to mating screw angle (82° for UNC flat-head; 90° for ISO metric flat-head)
– Correct driver (hex key, Torx key, or Phillips — match to your mating screw)
– Torque driver (optional, recommended for stainless and for precision assemblies)

Step-by-step procedure:

1. Clamp all layers in final assembly position before drilling. Drill the through-hole through all layers simultaneously for perfect alignment. Target hole diameter: barrel OD + 0.15 mm (e.g., for a barrel OD of 8 mm, drill 8.15 mm).
2. Countersink the entry face (if using flat-head mating screw). Set countersink depth so the flat-head mating screw sits exactly flush — not recessed more than 0.2 mm, not proud.
3. Insert the barrel from the back face. The flange should contact the material surface cleanly with no wobble. If the barrel spins in the hole, the clearance is too large — use a larger barrel OD size or a nylon-insert collar.
4. Start the mating screw by hand. Engage the first 2 threads before touching the driver. Hand-start is critical — stainless sex screws in particular can gall (weld under thread friction) if driven before threads are properly aligned.
5. Drive to snug. The correct final position is barrel flange fully contacted against material + mating screw head flush with entry surface. There should be zero visible gap at the barrel flange.
6. Verify clamping. Try to rotate the barrel by hand. It should not spin (which indicates insufficient clamping force). It should not be loose against the material surface.

Anti-gall note for stainless: Apply a thin film of anti-seize or thread lubricant to the mating screw shank before installation. Dry stainless threads gall easily, especially during high-speed driving. Anti-seize also makes future disassembly easier after years of service.

Torque reference:
– M4 brass: 0.5–0.8 N·m
– M5 stainless: 2.0–3.0 N·m
– M6 stainless: 3.5–5.0 N·m
– M8 stainless: 7.0–10.0 N·m

Future Trends in Sex Screw Manufacturing (2026+)

Three forces are reshaping the sex screw market through 2026: advanced material adoption in consumer segments, drive standardization away from Phillips, and microfastener growth in electronics and wearables.

Trend 1: Titanium Sex Screws in Premium Consumer Markets

Titanium Grade 5 (Ti-6Al-4V) sex screws are entering premium EDC gear, custom knife hardware, and luxury leatherwork accessories. Titanium offers approximately 40% weight reduction versus 316 stainless at comparable tensile strength (900–1,000 MPa for Ti-6Al-4V), with superior corrosion resistance and a distinctive metallic appearance popular in premium hardware.

Production cost for titanium sex screws has declined roughly 25% since 2022 as CNC micromachining efficiency has improved. Titanium sex screws that were cost-prohibitive even for high-end products in 2020 are now appearing in mid-market EDC retail — a trend that will accelerate through 2026.

Trend 2: Drive Standardization Toward Hex Socket and Torx

Phillips drive is losing market share in commercial and industrial sex screws. ISO 14583 (Torx pan head) and ISO 4026 (hex socket flat head) are now written into more OEM assembly specifications. The shift is driven by robotic assembly (Phillips is unreliable under automated torque control; Torx and hex-socket are not) and by increased consumer awareness of drive quality in craft markets.

Amazon’s top-selling Chicago screw binding post sets increasingly default to hex socket drive where they previously offered only Phillips — reflecting the upstream shift in buyer preference toward better tooling compatibility.

Trend 3: Micro Sex Screws for Wearables and Medical Devices

Wearable devices (smartwatches, AR/VR headsets), compact medical instruments, and precision optical housings require sex screws in M2.0–M2.5 sizes — barrel OD under 4 mm, barrel length 1.5–5 mm. These are precision CNC-turned components with tolerances of ±0.01 mm on bore diameter and barrel length.

303 free-machining stainless is the preferred material: it machines without burr generation (critical at M2 thread size where burrs cause binding), holds adequate strength for micro-assembly loads, and offers sufficient corrosion resistance for sealed device environments.

FAQ: Sex Screw (Sex Bolt) Questions Answered

Every question below is answered with a direct bottom line first — the one-sentence answer you need — followed by the detail that lets you act on it.

What is another name for a sex bolt?

Sex bolts are also called Chicago screws, barrel bolts, binding posts, post screws, and mating screw assemblies — all names for the same two-part fastener.

The name varies by market: leatherworkers use “Chicago screw,” furniture manufacturers say “barrel bolt,” stationery suppliers say “binding post,” and engineering documents use “sex bolt” or “sex screw.” When placing orders, always specify by thread standard and barrel length — not trade name — to avoid mismatches between suppliers.

Why is it called a sex bolt?

The “sex” prefix comes from Latin — either from secare (to join) denoting a two-part fastener, or from sex (six) referencing the original six-thread-engagement specification. It has no suggestive meaning in a hardware context.

The geographic variant “Chicago screw” comes from 19th-century Chicago-area bookbinding manufacturers who popularized the fastener in North American markets. Both names refer to identical hardware.

What is the difference between a sex screw and a sex bolt?

There is no functional difference — they are the same fastener. “Sex bolt” is the standard engineering term (and the Wikipedia-recognized name); “sex screw” emphasizes the threaded mating screw half and is common in procurement and manufacturing spec sheets. Use either term; specify by dimensions either way.

What is a sex bolt used for?

Sex bolts are used wherever a through-hole joint must be flush on both faces, installed from one side, and disassembled repeatedly — leatherwork, bookbinding, flat-pack furniture, multi-tool pivots, architectural hardware, and industrial panels are the primary applications.

The defining use case is a joint where both faces are visible or tactile (a belt buckle fastened through leather, a binder post through document pages), and where a standard bolt-plus-nut would either require inaccessible back-face tool access or leave an ugly protruding nut.

How do I size a sex screw for my application?

Measure total material thickness, then select barrel length 0–1 mm shorter than that total. Choose thread diameter by expected load (M4 for light craft, M5 for medium load, M6 for furniture). Always specify material and drive type.

If your measured thickness falls between two standard barrel lengths, choose the shorter one — a slightly short barrel still achieves full thread engagement. A barrel that’s too long leaves a gap that never closes.

Can I use a regular machine screw as the mating screw in a sex bolt?

Yes, as long as thread pitch and diameter match exactly. A standard 1/4-20 machine screw engages a 1/4-20 sex bolt barrel; an M5×0.8 machine screw fits an M5 sex screw barrel. Head type must suit your application (flat-head for flush entry face; pan-head if flush is not required). Screw length must achieve minimum 1.5× thread-diameter engagement inside the barrel.

How tight should a sex screw be tightened?

Snug-tight plus ¼ turn is the correct torque for most sex screw applications — never use impact tools, and for brass barrels, stop at snug plus 1/8 turn.

Sex screws are clamping fasteners, not structural tension bolts. Overtightening brass or zinc barrels strips the internal thread; overtightening stainless sex screws through leather or soft wood crushes the material and loosens the joint as it rebounds. For precision assemblies (multi-tool pivots, hinged panels), use a torque driver: M4 brass = 0.6 N·m max; M5 SS = 2.5 N·m; M6 SS = 4.5 N·m.

Are sex screws the same as barrel nuts for furniture?

No — they look similar but are not interchangeable. Furniture barrel nuts (used with cam-lock systems and Confirmat screws) have offset bore geometry: the thread enters from the side of the barrel, not the end. A sex screw barrel threads from the end face of the barrel. The two are mechanically incompatible; using one in place of the other will result in no thread engagement.

Conclusion

The sex screw — Chicago screw, sex bolt, barrel bolt, binding post — solves one specific and recurring fastener problem: joining materials flush on both faces, from one side, with a fastener that can be removed and reinstalled dozens or hundreds of times. The mechanics are simple; the specification decisions are not.

Getting a sex screw order right means: barrel length matched to your exact material stack (not a rounded approximation), thread diameter scaled to your load (M4 for craft, M6 for furniture, M8+ for structural), drive type appropriate to your reassembly frequency (Torx or hex socket for anything that will be touched more than 50 times), and material grade matched to your exposure environment (brass for indoor craft, A2 stainless for exposed hardware, A4 stainless for marine or food contact).

For production runs — metric or imperial sex screws, stainless or brass, standard stock or custom barrel lengths — productionscrews.com supplies B2B quantities with documented material certifications and fast lead times. Bring the specs from this guide to the first quote and you’ll get the right sex screw on the first order.
