Wood Tapping Screws: Types, Sizes & Selection Guide (2026)

Wood tapping screws are threaded fasteners that cut their own mating threads directly into wood or composites. No pre-tapped hole required.

You’re mid-project, piece of oak in the vise, and you reach for a screw. There are three bags in the drawer: one says “wood screws,” one says “self-tapping,” and one is a mystery bin of assorted hardware. Which one won’t split the grain, strip on the drive, or back out six months later under load? This guide covers every type of wood tapping screw, what the size numbers actually mean, which materials survive outdoor use, and the technique that prevents the most common installation failures.

What are wood tapping screws?

Wood tapping screws are fasteners engineered to create their own thread path as they advance into wood, plywood, MDF, or wood composites. The screw’s helical thread displaces and compresses wood fibers rather than cutting a pre-formed channel, which is why the joint is often stronger than one made with a machine screw in a pre-drilled thread.

The name comes from the metalworking concept of “tapping,” which refers to cutting threads into a material. When applied to wood, the same principle holds: the screw is its own tap. You don’t need a separate threading tool, and you usually don’t need a pilot hole in softer woods (though one prevents splits in hardwood every time).

How wood tapping screws work

As a wood tapping screw enters the substrate, the leading thread tip displaces fibers outward and slightly downward. The subsequent threads compress those fibers against the thread flanks, building the mechanical interlock that holds the joint. According to the U.S. Forest Service’s Wood Handbook, screw withdrawal resistance in wood correlates directly with the specific gravity of the species, meaning a #10 screw in dense hard maple holds considerably more than the same screw in soft pine.

The upshot: harder wood means more withdrawal strength, but also more risk of splitting without a pilot hole. That trade-off drives almost every selection decision you’ll make.

Tapping screws vs. standard wood screws

People use “wood tapping screw” and “wood screw” interchangeably, but they’re not the same thing.

In a deck construction or cabinet assembly environment, wood tapping screws are the default because they hold in both solid wood and engineered panels without requiring precision pilot-hole sizing.

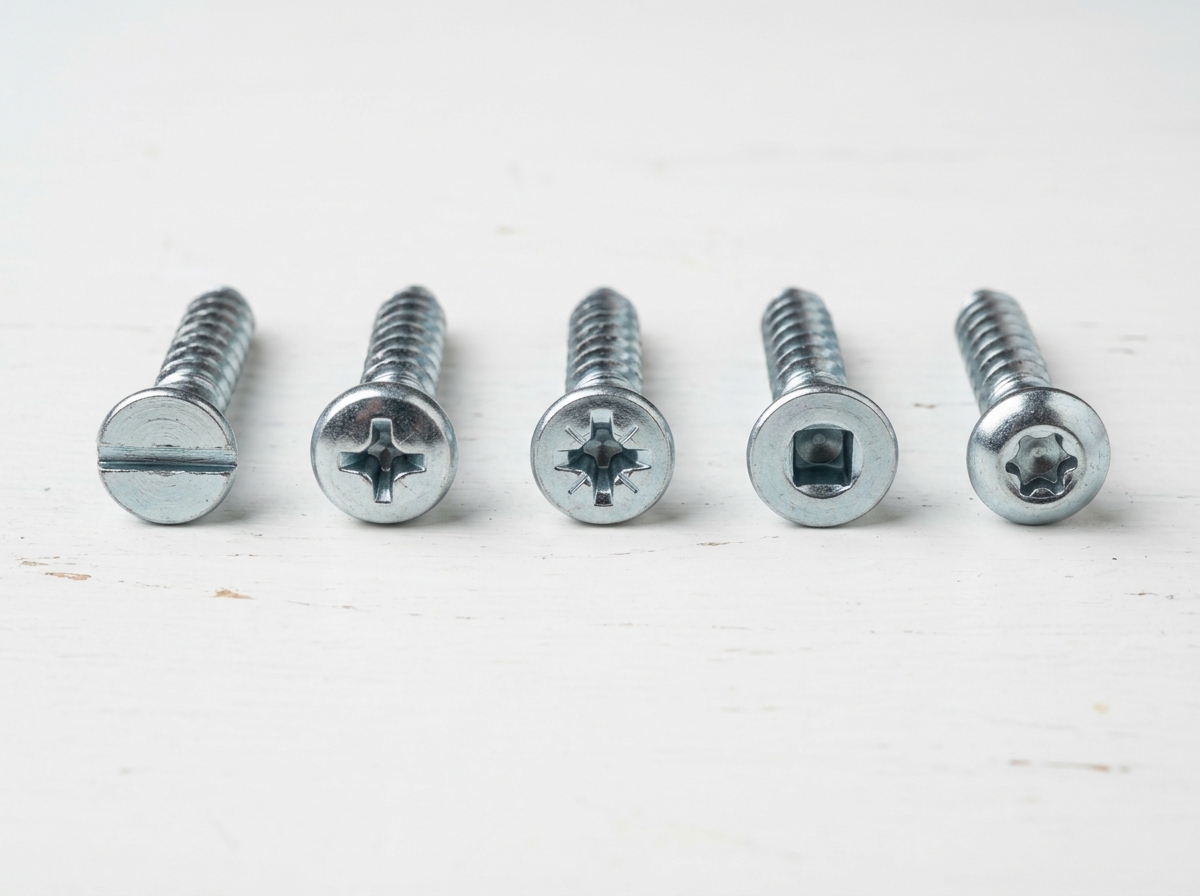

Types of wood tapping screws

The fastener industry classifies tapping screws by thread geometry, and the letters on the package (A, AB, B, etc.) tell you what you’re getting. Not all of them are appropriate for wood.

Type A: coarse thread, gimlet point

Type A screws have a coarse thread pitch and a gimlet (sharp) point. Fewer threads per inch means faster driving and a good fit for softer woods and thinner sheet materials. They’re the original tapping-screw design, standardized decades ago and still common in general woodworking.

Where they do well: softwood deck boards, pine framing, thin plywood panels. Where they fall short: hardwoods over 1 inch thick and composite panels with a high resin content that resists thread forming.

Type AB: fine-start, sharper thread

Type AB combines the sharp point of Type B screws with the coarse thread pitch of Type A. Easier starting (the fine point locates quickly and doesn’t wander) plus fast drive speed. Type AB wood tapping screws have largely replaced pure Type A in hardware stores, and for most woodworking and construction tasks (cabinet assembly, furniture builds, trim work) they’re the right default.

Self-drilling tapping screws (Tek screws)

Self-drilling tapping screws carry a drill-bit-shaped tip. They’re designed primarily for metal-to-metal or wood-to-metal connections. In wood-to-metal applications, say attaching a wood ledger to a steel structural member, a self-drilling screw handles both materials in one pass. The tip drills through metal first; the threads then engage both the metal and the wood backing.

One caution: true self-drilling screws are slower to start in pure wood than Type AB because the drill tip needs more rotational force before the threads bite. In straight wood-to-wood applications, they offer no advantage.

Type 17: auger point for engineered panels

Type 17 screws have a single auger-style flute machined into the tip. As the screw enters the material, the flute clears chips and compressed fibers from the hole. Split risk drops noticeably, as does drive torque, even in dense composites, hardwoods, and LVL (laminated veneer lumber). If you’re fastening into 3/4-inch oak plywood or dense engineered lumber without a pilot hole, Type 17 is the one that won’t blow out the back face.

Head styles and drive types

Head geometry controls how the screw sits in the material and how much torque you can apply before camming out. Getting this wrong means marred surfaces and stripped drives.

Head profiles: flat, pan, bugle, hex

Flat (countersunk) head is the standard for wood joinery. The conical underhead angle (typically 82 degrees in the US, 90 degrees in metric) pulls the head flush with or below the surface as it seats. Most furniture and cabinet assembly uses flat-head wood tapping screws for exactly this reason: no protruding hardware, clean finish.

Bugle head is the deck screw’s signature shape. The curved underhead profile spreads clamping force over a wider area and doesn’t pull through thin decking as aggressively as a flat head. In production framing, bugle-head coarse-thread screws are the fastest way to fasten wood to wood without damaging the surface.

Pan head sits proud of the surface with a flat bearing face. The larger bearing diameter distributes load, making it a better choice when fastening a thin wood cleat or bracket where the head can’t pull through. Pan head wood tapping screws show up often in shelf-support hardware and fixture assembly.

Hex washer head pairs a hexagonal head with an integrated washer flange. You can drive it with an impact wrench at full torque, which is why it appears in outdoor structural applications: deck ledger boards, post bases, joist hangers. The washer face prevents embedment into the wood surface, which keeps the fiber from crushing but leaves a visible raised fastener.

Drive systems: Phillips, Torx, square, hex

The drive recess is where most field failures happen. A stripped drive at 75% depth means drilling out and starting over.

Phillips is the most common drive on wood tapping screws sold in hardware stores. It’s designed to cam out under high torque, which was originally a feature on assembly lines (it prevented overtightening), but for hand-driven woodworking it’s a liability. If you’re driving more than 20 screws with a cordless drill, Phillips will eventually frustrate you.

Torx (star drive) is the professional’s choice. The six-pointed recess transfers torque without cam-out, you can run higher driver speeds, and the bit stays centered in the head on entry. Production cabinetmakers switched to Torx almost universally in the early 2010s. According to the Industrial Fasteners Institute’s torque-transfer testing, Torx achieves the highest torque-transfer efficiency of any common drive system.

Square (Robertson) is popular in Canada and among woodworkers who prefer a self-centering bit. Less cam-out than Phillips, though slightly more than Torx. If you’re already running Robertson bits on other projects, square-drive wood tapping screws are a sensible choice.

Hex (Allen/internal) is reserved for situations needing maximum torque: structural lag-type applications where a wrench rather than a drill is used. For standard wood tapping screw applications, hex drive is overkill and harder to countersink cleanly.

Materials and coatings

The screw material determines whether the joint lasts 2 years or 20. Getting this wrong in outdoor or corrosive environments is expensive.

Zinc-plated steel

Zinc plating is the baseline coating for interior wood tapping screws. The zinc layer sacrificially corrodes before the underlying steel. In dry interior environments (furniture, cabinet boxes, interior trim) zinc-plated wood tapping screws are adequate and cost-effective.

They are not suitable for outdoor use, contact with ACQ (alkaline copper quaternary) pressure-treated lumber, or coastal environments. ACQ has been the standard treatment for deck lumber since 2004 and it’s chemically aggressive: it will corrode zinc plating within one season, leaving rust streaks on the wood and a weakened fastener.

Stainless steel (304 and 316)

Stainless steel wood tapping screws are the right call for outdoor exposure, treated lumber, marine environments, and anywhere standing water may contact the joint. 304 stainless handles most residential outdoor applications (decks, fences, garden furniture). 316 stainless adds molybdenum to the alloy, giving it better resistance to chloride corrosion. That’s the spec for dock hardware and coastal installations.

Cost premium over zinc-plated: typically 3 to 5 times for 304, 6 to 8 times for 316. In practice, the premium is trivial compared to the labor cost of replacing fasteners that corrode through in a deck rebuild.

Ceramic and polymer-coated (green, blue, yellow)

Ceramic-coated screws, often sold as “ACQ-approved” or “ceramic-coated deck screw,” are a cost-effective alternative to stainless for treated-lumber applications. The ceramic coating is more chemically resistant than zinc while costing less than stainless. According to testing by the American Wood Protection Association, properly coated steel fasteners meet the minimum service life requirements for above-ground ACQ lumber contact.

Their limitation: the coating can be damaged during driving. If you back a ceramic-coated wood tapping screw out and re-drive it, the coating at the thread flanks may strip and expose bare steel.

Hardened carbon steel

Some specialty wood tapping screws, particularly structural screws marketed for LVL, engineered lumber, and heavy timber, are made from hardened carbon steel rather than standard low-carbon. The hardening process (through-hardening or case-hardening) increases the screw’s resistance to torsional failure during driving in dense materials. If you’re driving 5-inch screws into 3/4-inch LVL with an impact driver at full torque, a standard screw may snap. Structural-grade hardened screws won’t.

How to choose the right wood tapping screw

Selecting wood tapping screws comes down to four variables: material, thickness, load direction, and environment. Work through them in that order.

Matching screw size to material thickness

Screw gauge (diameter) and length follow a simple rule: the screw should penetrate the receiving member by at least 1.5 times the screw diameter. For a #8 screw (0.164 inches diameter), that’s at least 0.25 inches of thread engagement in the second piece. Most woodworkers use the two-thirds rule in practice: the screw should penetrate the receiving piece by at least two-thirds of its total length.

Common sizing for reference:

Gauge numbering follows the formula: screw number times 0.013 plus 0.060 equals diameter in inches. A #10 screw is 0.190 inches in diameter. A #14 is 0.242 inches. If you’re working from metric lumber specs, divide the screw OD in millimeters by 25.4.

When to pre-drill vs. go direct

Pilot holes are one of the most misunderstood aspects of working with wood tapping screws. Short answer: always pre-drill in hardwoods (oak, maple, cherry, walnut), always pre-drill near edges (within 1 inch), and you can skip it in softwoods when the grain is clear and the screw enters at least 2 inches from any end.

A pilot hole should be 75 to 80 percent of the screw’s minor diameter (root diameter, not thread OD). Over-boring creates a loose thread; under-boring defeats the purpose. For a #8 screw with a 0.094-inch minor diameter, a 3/32″ bit is correct. Most manufacturers publish pilot-hole charts on the product page or the box label.

In MDF and dense composites, always pre-drill. These materials have no grain to guide the thread, and without a pilot hole you’ll often see the face layer delaminate or the panel bow around the fastener head.

Common mistakes that split wood or strip threads

Driving too fast is the most common error. High RPM on an impact driver generates heat at the thread flanks and can harden and burnish the wood fibers rather than compressing them cleanly. Dial back to a moderate speed in hardwood, especially on final seating.

Skipping the countersink is a close second. A flat-head wood tapping screw needs a countersink to seat flush; the hole itself doesn’t create the recess. Driving a flat-head without a countersink will split the wood at the surface as the conical underhead forces fibers apart.

Using too-short screws is the number one field failure mode. A screw that barely bites the receiving piece has minimal withdrawal strength. When the joint sees lateral force (a drawer pulled sideways, a shelf loaded unevenly), the screw levers out. Minimum spec: two-thirds of screw length into the receiving member.

Using zinc-plated screws in ACQ lumber is a slower version of the same failure. You’ll see rust streaks on your deck boards within a single season; within two seasons the fastener is compromised.

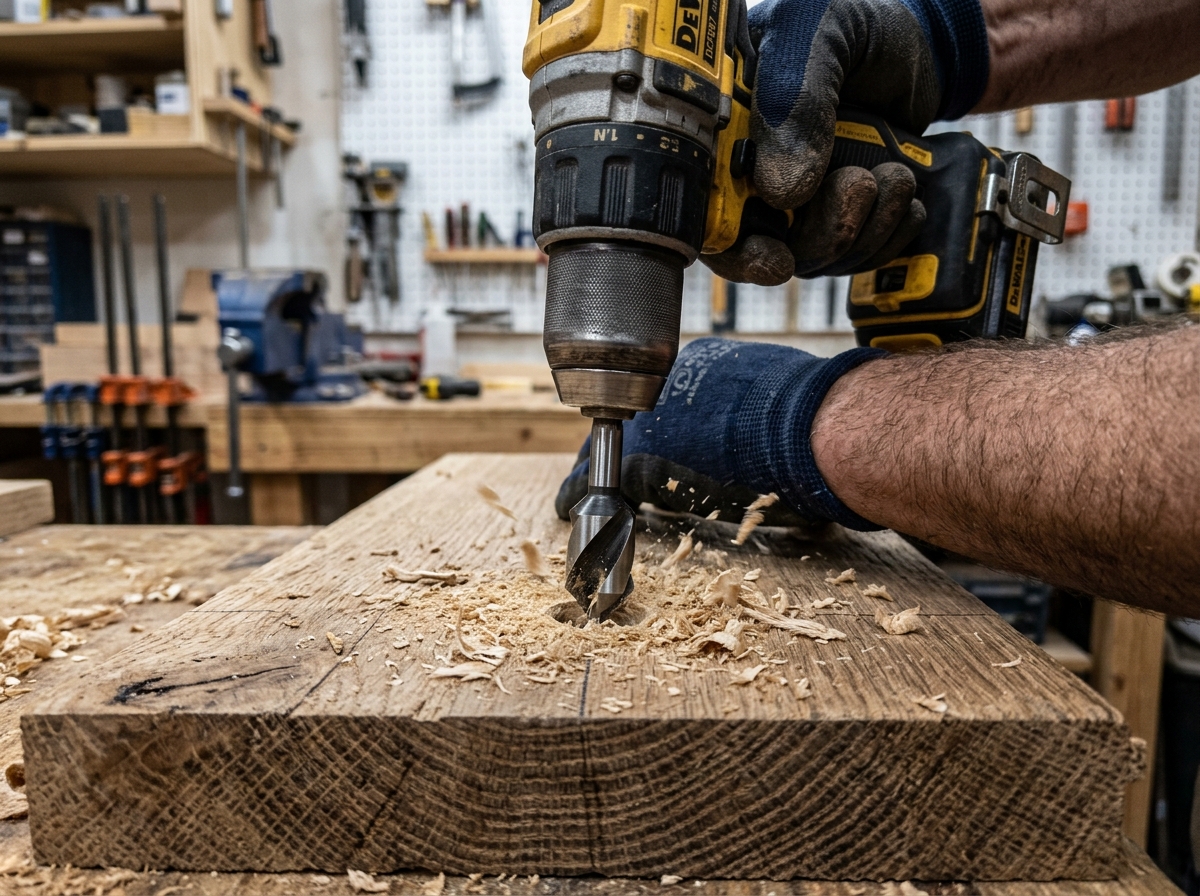

Step-by-step installation guide

Installing wood tapping screws correctly takes 30 seconds per fastener when you have the setup right. Here’s the sequence for hardwood, which is the most demanding case.

Tools and setup

You need three things: a cordless drill/driver, a combination countersink/pilot bit sized for your screw gauge, and a magnetic bit holder with a #2 Torx or Phillips bit. A depth stop on the countersink bit eliminates guesswork on recess depth.

Set your drill’s clutch to a medium-low setting for hardwood, medium for softwood and composites. Impact drivers skip the clutch and use high-speed bursts. Fine for framing, but in fine woodworking they can overtighten and compress grain below the head. For furniture-grade work, use a standard drill/driver with clutch.

Driving technique for clean results

1. Mark your centerpoint. An awl or punch prevents the bit from wandering on the first rotation.
2. Run the countersink bit. One pass at full speed creates the conical recess and the pilot hole in a single step if you’re using a combination bit.
3. Start the screw by hand or on slow drill speed until the point catches. This centers the screw in the pilot hole before applying torque.
4. Drive to final depth at medium speed. Stop when the head is flush or just below the surface. Going deeper than 1/16 inch crushes the wood above and creates a visible low spot.
5. Don’t back out and re-drive. Every time you reverse a wood tapping screw, the thread channel widens slightly. If you need to reposition, use a new screw.

For face-frame cabinet joinery, a pocket-screw jig combines the pilot hole, countersink, and angle into one operation. Wood tapping screws (usually a specialized coarse-thread pocket screw) are the fastener of choice there. Fine Woodworking’s joinery reference library covers pocket-screw technique in detail for anyone building furniture from scratch.

Industry applications of wood tapping screws

Furniture and cabinet assembly

Production furniture manufacturers rely on wood tapping screws as the primary structural fastener in flat-pack and RTA (ready-to-assemble) construction. Coarse-thread Type AB screws in 1-1/4″ and 1-5/8″ lengths are the backbone of cabinet carcass assembly: back panels, nailers, stretchers, drawer slides. The speed advantage over nailing is significant in small-shop production, since there’s no compressor, no nail gun, and no punch-and-fill step.

Custom furniture makers favor Torx-drive bugle-head screws in smaller gauges (#6, #8) because the head sits cleanly in oak and maple without the face-grain tearout that a standard flat head can cause if driven at an angle.

Deck and outdoor construction

Deck construction is the largest single application for wood tapping screws by volume. A standard 12×16 deck uses somewhere between 800 and 1,400 screws, depending on board width and joist spacing. The dominant specification is a #9 or #10 coarse-thread, 2-1/2″ to 3″ length, ceramic-coated or stainless, with a Torx or square drive.

The shift from galvanized nails to wood tapping screws in deck construction happened largely in the 2000s as impact drivers made screw driving practical at volume. Screws are removable for board replacement, hold boards flatter over time, and won’t back out from seasonal wood movement the way smooth-shank nails do.

If you want to explore the full range of production-grade fasteners for outdoor construction, including bulk packaging for contractor use, the configuration options for deck and structural applications are worth reviewing before specifying a large project.

Wood-to-metal connections

Connecting wood to light-gauge steel framing, a common task in commercial interior construction, requires a self-drilling wood tapping screw (Tek screw) with a drill-point tip rated for the metal gauge. The tip must be hard enough to penetrate the steel before the threads engage the wood.

The critical spec here is “drill-point number” (1 through 5), which indicates maximum steel thickness the tip will penetrate. A #2 drill point handles up to 14-gauge (0.075″) steel, the standard for light steel stud framing. A #3 handles up to 3/16″ steel. Using a #2 drill point on thicker steel results in a tip that dulls before penetrating, leaving the screw spinning in place while generating heat.

Production and industrial fastening

In production environments (furniture manufacturing lines, prefab construction, millwork shops) wood tapping screws run through pneumatic or electric auto-feed screwdrivers that deliver consistent torque and depth across thousands of fasteners per shift. The screw geometry matters more here than in hand-tool use: self-feeding auto-drive systems need a screw tip that engages consistently without jamming in the feed track, which is why Type AB with a fine start point dominates production applications.

Production screws for industrial and high-volume use are available in bulk configurations (1,000-piece, 5,000-piece) with the consistency tolerances needed for automated driving equipment. Dimensional variation that’s acceptable in hardware-store quantities becomes a feeding problem at production speeds.

Future trends in wood tapping screw technology (2026 and beyond)

Self-countersinking thread geometries

A growing category of wood tapping screws incorporates milling ribs or serrations just beneath the head that countersink as the screw seats, no separate countersink bit required. These “serrated countersink” designs cut the recess in one pass. They’re already standard in the higher-end deck screw market and moving into cabinet and furniture hardware.

The tradeoff is material compatibility: serrated countersinks work best in softwood and composites where the serrations can cut cleanly. In very dense hardwood (Ipe, teak, jarrah), the serrations may not displace material fast enough and can cause surface tearout.

Advanced corrosion-resistant coatings

Fastener manufacturers are moving beyond zinc and ceramic into proprietary multi-layer coatings that combine mechanical adhesion, chemical barrier, and sacrificial zinc in a single application. According to ASTM International’s salt spray testing standards (ASTM B117), the benchmark for accelerated corrosion testing, the best current coatings achieve 1,000+ hours before red rust. That’s more than three times the performance of hot-dip galvanizing, at a fraction of the weight penalty.

For contractors specifying fasteners on coastal projects where 316 stainless is cost-prohibitive, these advanced coatings represent a legitimate middle path. Wider adoption through 2026 looks likely as supply chain pressures on stainless steel continue.

Thread-forming vs. thread-cutting evolution

Traditional wood tapping screws form threads by compressing wood fibers. A newer design segment uses a thread-cutting geometry (similar to a tap) that removes material rather than displacing it. In high-resin composites and some tropical hardwoods, thread-cutting geometry generates less radial pressure during driving, nearly eliminating the splitting failures that plague even pre-drilled thread-forming screws in difficult materials.

This distinction, forming vs. cutting, will likely show up as a standard packaging callout within the next product generation cycle, the same way “self-drilling” became a recognized category in the 1990s.

Frequently asked questions

What is the difference between a tapping screw and a screw?
A standard wood screw creates a clamping joint using a pre-formed or displaced thread path. A tapping screw is engineered to form or cut its own threads on entry. In practical terms, wood tapping screws have sharper thread geometry, more aggressive thread pitch, and a tip designed for self-starting, which makes them faster to install and more reliable in composites and engineered lumber where standard screws often strip.

Do wood tapping screws need a pilot hole?
Not always. In softwoods under 1-inch thick, a Type AB wood tapping screw can often go in without a pilot hole. In hardwoods, near edges, or in MDF and dense composites, a pilot hole is required to prevent splitting and reduce drive torque. When in doubt, drill the pilot. A 30-second extra step prevents splits that ruin a workpiece.

What size wood tapping screws do I need for deck boards?
For 5/4-inch composite or pressure-treated deck boards over standard 1.5-inch framing, a #9 or #10 coarse-thread screw in 2.5-inch to 3-inch length is the industry default. Use a ceramic-coated or stainless variant to avoid corrosion from ACQ-treated lumber. Drive two fasteners per board-joist intersection for boards 6 inches or wider.

Can I use sheet metal screws in wood?
Sheet metal screws (Type B) have a finer thread pitch optimized for thin metal. They will engage wood but provide lower withdrawal strength than wood tapping screws of the same gauge, and the fine thread can strip in softer grain. For wood-to-wood applications, use a Type A or AB wood tapping screw. For wood-to-metal, use a self-drilling Tek screw rated for the metal gauge.

Why do my wood tapping screws keep stripping the drive?
Three common causes: a worn driver bit (a worn Phillips or Torx transfers torque at the edge of the recess, not the face, so replace it); too high a drill speed (dial back RPM and let the thread do the work); or the wrong drive type for the material (if you’re using Phillips in hardwood at depth, switch to Torx, which maintains full engagement at high torque without cam-out).

What is the strongest wood tapping screw configuration for structural use?
For maximum withdrawal and shear strength: use a structural-grade hardened steel screw rather than standard carbon steel, Type 17 auger point in dense materials, Torx drive, and size up one gauge from your standard spec. Pre-drill at 80 percent of minor diameter. Seat the head flush; over-driving crushes fiber and reduces clamping force. For timber-frame or heavy structural connections, consult ICC-evaluated fastener specs rather than guessing load capacity in the field.

Are stainless steel wood tapping screws magnetic?
304 stainless is weakly magnetic in its work-hardened state, so a magnetic bit holder will hold it, just not aggressively. 316 stainless has even lower magnetic permeability. This rarely causes problems with magnetic bit holders, but if you’re relying on a magnetic feeder strip to hold screws in a drill guide, stainless screws may not feed as reliably as carbon steel. Test your setup before committing to a production run.

Conclusion

Wood tapping screws aren’t glamorous, but the right spec makes a joint and the wrong one fails it. The decisions are simple once you know the variables: Type AB for general wood-to-wood work, self-drilling for metal attachment, Type 17 for dense composites. Stainless or ceramic-coated for anything exposed to weather or treated lumber. Torx drive when you’re driving more than a handful at a time.

The cost of getting the spec right is a few cents per fastener. Getting it wrong means splitting a $200 hardwood tabletop, watching deck boards cup, or rebuilding a joint that never had enough thread engagement to begin with. For high-volume project needs or production-quantity wood tapping screws, bulk configurations are available with consistent dimensional tolerances suited to automated driving equipment. Match the screw to the material, pre-drill when there’s any doubt, and let the thread do its job.
